The HPE FlexNetwork 7500X Switch Series is a versatile, multi-layered, high performance, modular switch for enterprise LAN edge, aggregation, and core layers.
The 7500X combination of Chassis, MPUs and LPUs offers 1/10/40/100GbE connectivity, with PoE/PoE+, meets existing and future requirements, IoT, etc. Higher switching bandwidth (480Gbps/slot) and L2/L3 routing services dramatically improve performance and increases support for mission-critical environments.
Customers can take advantage of Virtual Extensible LAN (VXLAN) and Ethernet VPN (BGP EVPN) to provide greater scalability and better utilization of available network paths and leverage HPE Intelligent Resilient Fabric (IRF) to enable flatter, more agile and highly available networks.
HPE Intelligent Management Center (IMC) provides a single view of the entire network. Support for IPv4/IPv6, and MPLS/VPLS features provide investment protection and an easy transition from IPv4 to IPv6 networks and ease of maintenance is assured with Graceful Insertion and Removal (GIR) and In Service Software Update (ISSU).
General Information
| Manufacturer |
Hewlett Packard Enterprise |
| Manufacturer Part Number |
R8N48A |
| Manufacturer Website Address |
https://www.hpe.com/au/ |
| Brand Name |
HPE |
| Product Line |
FlexNetwork |
| Product Series |
7500X |
| Product Model |
7506X |
| Product Name |

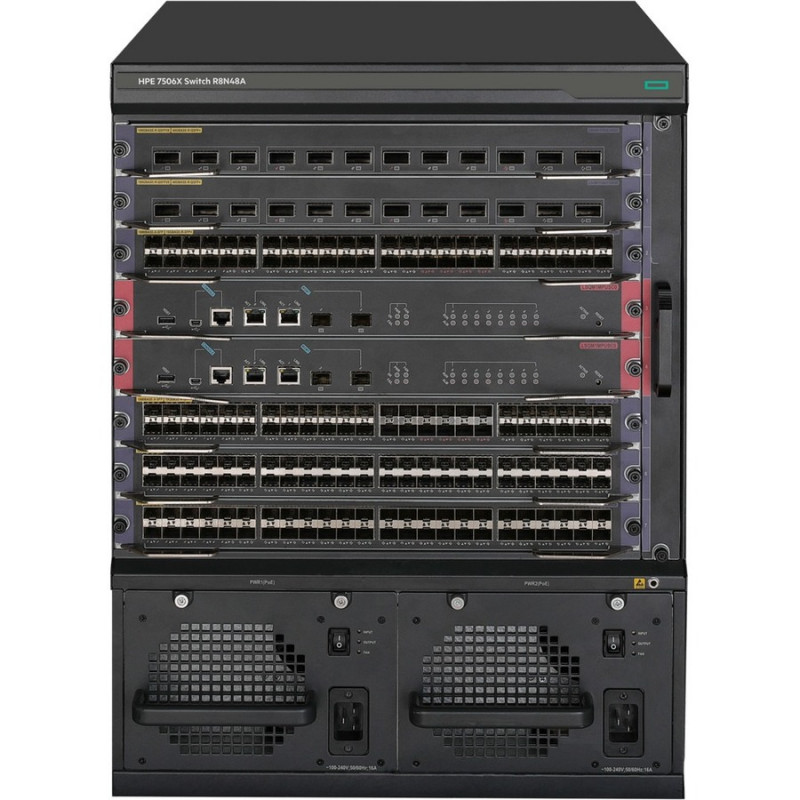

FlexNetwork 7506X PoE Ethernet Switch 6 Slots Chassis |
| Product Type |
Switch Chassis |
Interfaces/Ports
| Modular |
Yes |
| Port/Expansion Slot Details |
24 x 100Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported |
Optical Fiber |
| Twisted Pair |
| Ethernet Technology |
100 Gigabit Ethernet |
| Network Technology |
100GBase-X |
Physical Characteristics
| Compatible Rack Unit |
13U |
| Form Factor |
Rack-mountable |
| Cabinet Mount |
| Surface Mount |
| Height |
575.1 mm |
| Width |
436.1 mm |
| Depth |
420.1 mm |
Power Description
| PoE (RJ-45) Port |
Yes |
| Input Voltage |
120 V AC |
| 230 V AC |
| Frequency |
50 Hz |
| 60 Hz |
| Power Source |
Power Supply |
| Number of Power Supplies Supported |
2 |
| Power Consumption |
1400 W |
Warranty
I/O Expansions
| Number of Total Expansion Slots |
8 |
| Expansion Slot Type |
I/O Module |
| Main Processing Unit (MPU) |
Management & Protocols
Miscellaneous
| Package Contents |
FlexNetwork 7506X PoE Ethernet Switch 6 Slots Chassis |
| 1 x R8N60A Fan Tray |
| Mounting Hardware |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| WEEE |
Network & Communication
| Layer Supported |
2 |
| Networking Standards |
IEEE 802.3af |
| IEEE 802.3x |
| IEEE 802.3at |
| IEEE 802.3 |
| IEEE 802.3ab |
| IEEE 802.3ac |
| IEEE 802.3ad |
| IEEE 802.3ae |
| IEEE 802.3ah |
| IEEE 802.3ba |
| IEEE 802.3u |
| IEEE 802.3z |
| IEEE 802.1ab |
| IEEE 802.1Q |
| IEEE 802.1D |
| IEEE 802.1w |
| IEEE 802.1s |
| IEEE 802.1ad |
| IEEE 802.1p |
| IEEE 802.1x |
| IEEE 802.1ae |
| IEEE 802.1ag |
