Aruba 6100 Switch Series
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
General Information
| Manufacturer |
Hewlett Packard Enterprise |
| Manufacturer Part Number |
JL676A#ABG |
| Manufacturer Website Address |
https://www.hpe.com/au/ |
| Brand Name |
Aruba |
| Product Series |
6100 |
| Product Name |

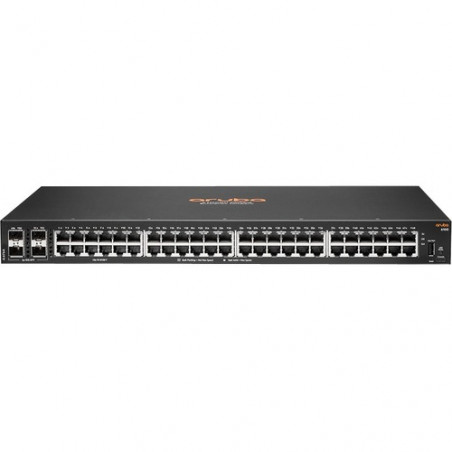

6100 48G 4SFP+ Switch |
| Product Type |
Ethernet Switch |
Management & Protocols
Media & Performance
| Media Type Supported |
Twisted Pair |
| Optical Fiber |
| Ethernet Technology |
Gigabit Ethernet |
| 10 Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| 10GBase-X |
Miscellaneous
| Package Contents |
6100 48G 4SFP+ Switch |
| Mounting Brackets |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| WEEE |
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Wall Mountable |
| Height |
43.9 mm |
| Width |
442 mm |
| Depth |
247.4 mm |
| Weight (Approximate) |
3.42 kg |
I/O Expansions
| Number of Total Expansion Slots |
4 |
| Expansion Slot Type |
SFP+ |
| Number of SFP+ Slots |
4 |
Interfaces/Ports
| Total Number of Network Ports |
48 |
| Uplink Port |
Yes |
| Modular |
Yes |
| Network (RJ-45) |
Yes |
| Port/Expansion Slot Details |
48 x Gigabit Ethernet Network |
| 4 x 10 Gigabit Ethernet Expansion Slot |
Network & Communication
| Layer Supported |
3 |
| Networking Standards |
IEEE 802.3 |
| IEEE 802.3az |
| IEEE 802.3ad |
| IEEE 802.1s |
| IEEE 802.1D |
| IEEE 802.1w |
| IEEE 802.1p |
| IEEE 802.1ab |
| IEEE 802.1Q |
| IEEE 802.1x |
Power Description
| Frequency |
50 Hz |
| 60 Hz |
| Power Source |
Power Supply |
| Number of Power Supplies Supported |
1 |
| Number of Power Supplies Installed |
1 |
| Power Consumption |
44.20 W |
Warranty
| Limited Warranty |
Lifetime |
