| MPN: | USBPLATE4 |
|---|

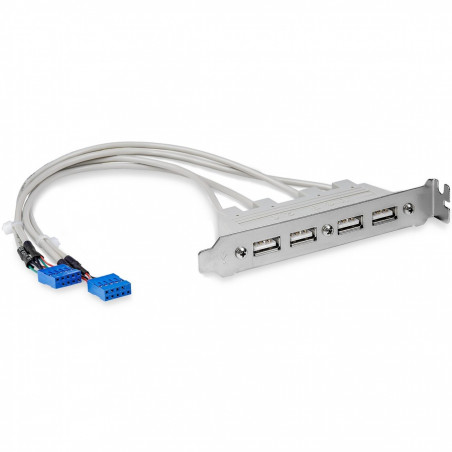

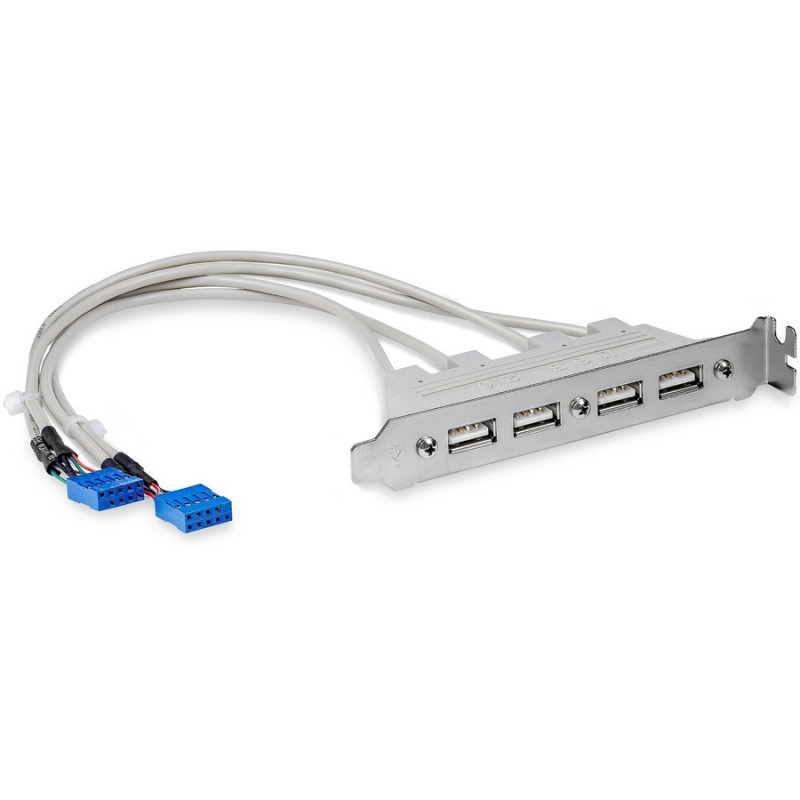

StarTech.com 4 Port USB A Female Slot Plate Adapter
$17.00
Including GST
StarTech.com 28.70 cm IDC/USB Data Transfer Cable for Motherboard, PC - 1 - First End: 4 x 4-pin USB 2.0 Type A - Female - Second End: 2 x 10-pin IDC USB Header - Female - 480 Mbit/s
The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard's manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USBPLATE4 |
| Manufacturer Website Address | http://www.startech.com/au |
| Brand Name | StarTech.com |
| Product Name | 4 Port USB A Female Slot Plate Adapter - USB panel - 4 pin USB Type A (F) |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable |
Miscellaneous
| Environmentally Friendly | Yes |
Physical Characteristics
| Weight (Approximate) | 68 g |
Technical Information
| Cable Type | IDC/USB |
| Cable Length | 28.70 cm |
| Connector Type on First End | USB 2.0 Type A - Female |
| Connector on First End Details | 4 x 4-pin USB 2.0 Type A - Female |
| Connector Type on Second End | IDC USB Header - Female |
| Connector on Second End Details | 2 x 10-pin IDC USB Header - Female |
| Conductor | Copper |
| Device Supported | Motherboard |
| PC | |
| Data Transfer Rate | 480 Mbit/s |
