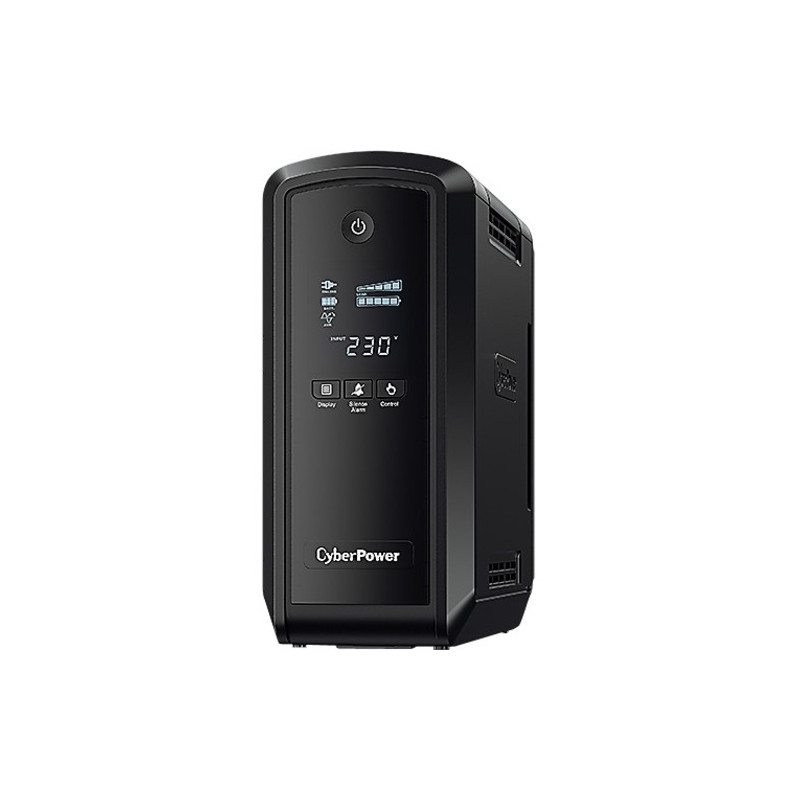

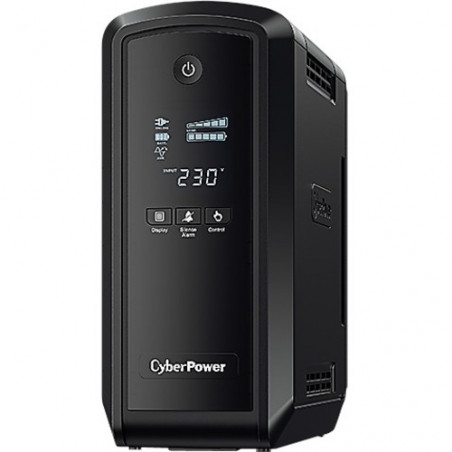

CyberPower CP900EPFCLCDa with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage levels for connected equipment. Featured data line protection guards phones, networks, and communication equipment against surges/spikes and other power irregularities. With multifunction LCD display, users can access information of power/battery conditions and configure advanced settings, including alert of potential power problems and self-test with a single push of a button.
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Storage Temperature |
-15°C - 45°C |
| Maximum Storage Elevation |
1.50 km |
| Storage Relative Humidity |
0% - 95% |
| Sound Emission (A-Weighted) |
34.2 dB(A) |
| Thermal Dissipation |
31 BTU/h |
General Information
| Manufacturer |
CyberPower Systems, Inc |
| Manufacturer Part Number |
CP900EPFCLCDA |
| Manufacturer Website Address |
http://www.cyberpower.com/au |
| Brand Name |
CyberPower |
| Product Line |
PFC Sinewave |
| Product Model |
CP900EPFCLCDA |
| Product Name |
PFC Sinewave CP900EPFCLCDA 900VA Tower UPS |
| Product Type |
Line-interactive UPS |
Management
| Alarm |
Battery Mode |
| Low Battery |
| Overload |
| UPS Fault |
Miscellaneous
| Package Contents |
PFC Sinewave CP900EPFCLCDA 900VA Tower UPS |
| Power Cord |
| USB Cable |
| User's Manual |
| Environmentally Friendly |
Yes |
| Environmental Certification |
GreenPower UPS |
| RoHS |
Power Description
| Load Capacity |
900 VA/540 W |
| Input Voltage |
230 V AC |
| Input Voltage Range |
170 V AC - 270 V AC |
| Output Voltage |
230 V AC |
| Input Frequency |
60 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
405 J |
Warranty
Battery Information
| Number of Batteries |
1 |
| Battery Characteristics |
Sealed |
| Battery Chemistry |
Lead Acid |
| Backup/Run Time (Full Load) |
1 Minute |
| Backup/Run Time (Half Load) |
7 Minute |
| Typical Battery Recharge Time |
8 Hour |
Controls/Indicators
| Status Indicators |
LED Indicators:
LCD Setting & Control:
- Mode Setting
- Alarm Setting
- Input & Output
- Battery Setting
- Fault & Warning
- Event & Log
LCD Information Display: - Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
|
Interfaces/Ports
| Network (RJ-45) |
Yes |
| USB (HID Compliant) Port |
Yes |
Physical Characteristics
| Product Color |
Black |
| Height |
231.1 mm |
| Width |
99.1 mm |
| Depth |
274.3 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
7.12 kg |
Technical Information
| AVR |
Yes |
| Plug/Connector Type |
IEC 60320 C14 |
| Receptacle Type |
AU |
| Receptacle Detail |
6 x AU |
| Number of Battery & Surge Outlets |
3 |
| Number of Surge-only Outlets |
3 |
| Dataline Protection |
RJ-11 |
| RJ-45 |
| Overload Protection |
Yes |
| Transfer Time |
4 ms |
| EMI/RFI Noise Filter |
Yes |
| Phase |
Single Phase |
| Energy Saving |
Technology: GreenPower UPS Bypass Technology |
| Application/Usage |
Computer System |
| Server |
| Network Device |
| Home |
| Office |
| SOHO Office |
| Workstation |
