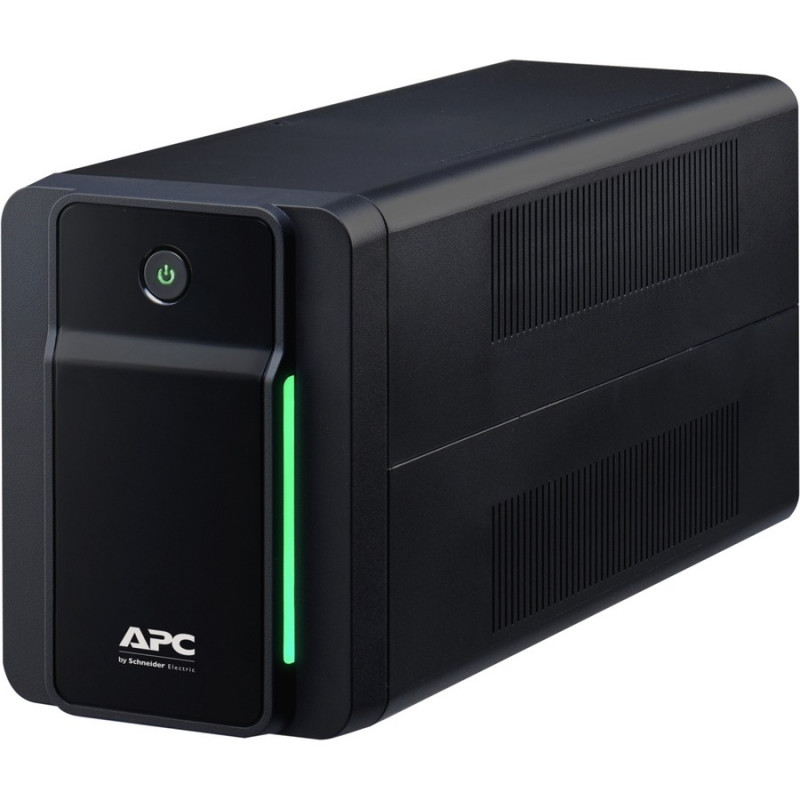

Battery Backup & Surge Protector for Electronics and Computers
The Back-UPS battery backup offers guaranteed power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. Models supply battery backup during outages and unsafe voltage fluctuations, as well as provide protection from damaging surges and spikes. They're available in 'tower' or 'floor' styles, and together with a variety of standard features, they are the perfect choice to protect your data and keep you connected.
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Storage Temperature |
-15°C - 40°C |
| Maximum Operating Elevation |
914.40 m |
| Maximum Storage Elevation |
914.40 m |
| Sound Emission (A-Weighted) |
40 dB(A) |
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
BX750MI-AZ |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
APC by Schneider Electric |
| Product Line |
Back-UPS |
| Product Name |
Back-UPS 750VA Tower UPS |
| Product Type |
Line-interactive UPS |
Management
| Alarm |
On Battery |
| Low Battery |
Miscellaneous
| Package Contents |
Back-UPS 750VA Tower UPS |
| User Manual |
Power Description
| Load Capacity |
750 VA/410 W |
| Input Voltage |
230 V AC |
| Input Voltage Range |
140 V AC - 300 V AC |
| Output Voltage |
230 V AC |
| Input Frequency |
60 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Stepped Approximated Sine Wave |
| Surge Energy Rating |
273 J |
Battery Information
| Battery Chemistry |
Lead Acid |
| Battery Energy |
388.8 kJ |
| Backup/Run Time (Full Load) |
12 Second |
| Backup/Run Time (Half Load) |
6.30 Minute |
| Typical Battery Recharge Time |
8 Hour |
| Replaceable Battery |
Yes |
Controls/Indicators
| Status Indicators |
LED Status Display: |
Physical Characteristics
| Height |
160 mm |
| Width |
120 mm |
| Depth |
355 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
5.40 kg |
Technical Information
| AVR |
Yes |
| Plug/Connector Type |
IEC 60320 C14 |
| Receptacle Type |
AUS |
| Receptacle Detail |
3 x AUS |
| Dataline Protection |
RJ-45 |
| Transfer Time |
6 ms |
| Application/Usage |
Electronic |
| Computer |
| Mission Critical Equipment |
| Gaming Console |
| Home |
| Business |
| Wireless Local Loop |
