| MPN: | SRV2KRILRK |
|---|

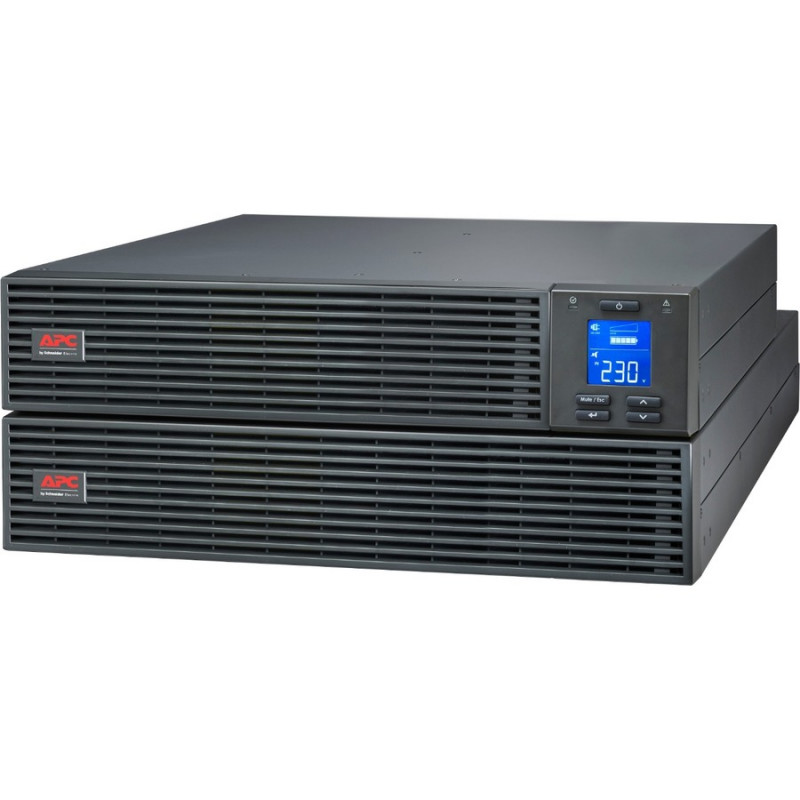

APC EASY UPS ONLINE SRV RM EXT. RUNTIME
$1,705.00
Including GST
APC by Schneider Electric Easy UPS Double Conversion Online UPS - 2 kVA/1.60 kW - 4U Tower - 4 Hour Recharge - 22.30 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 4 x IEC 60320 C13 - Single Phase - Serial Port
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
Controls/Indicators
| Status Indicators | LED Indicators:
LCD Graphics Display:
Control Panel:
|
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRV2KRILRK |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | APC by Schneider Electric |
| Product Line | Easy UPS |
| Product Name | Easy UPS 2kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
Interfaces/Ports
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
Physical Characteristics
| Height | 172 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Rack Height | 4U |
| Form Factor | Tower |
| Weight (Approximate) | 51.70 kg |
Power Description
| Load Capacity | 2 kVA/1.60 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 160 V AC - 280 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 600 J |
Battery Information
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 3499.2 kJ |
| Backup/Run Time (Full Load) | 22.30 Minute |
| Backup/Run Time (Half Load) | 49.60 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -20°C - 50°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 14.76 km |
| Storage Relative Humidity | 0% - 95% |
Management
| Network Management | USB |
| Alarm | Low Battery |
| Overload | |
| On Battery |
Miscellaneous
| Environmentally Friendly | Yes |
Technical Information
| Plug/Connector Type | IEC 320-C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C13 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage | Equipment |
| Server | |
| Business |
