- Out-of-Stock
| MPN: | E3SUPS10K3IB |
|---|

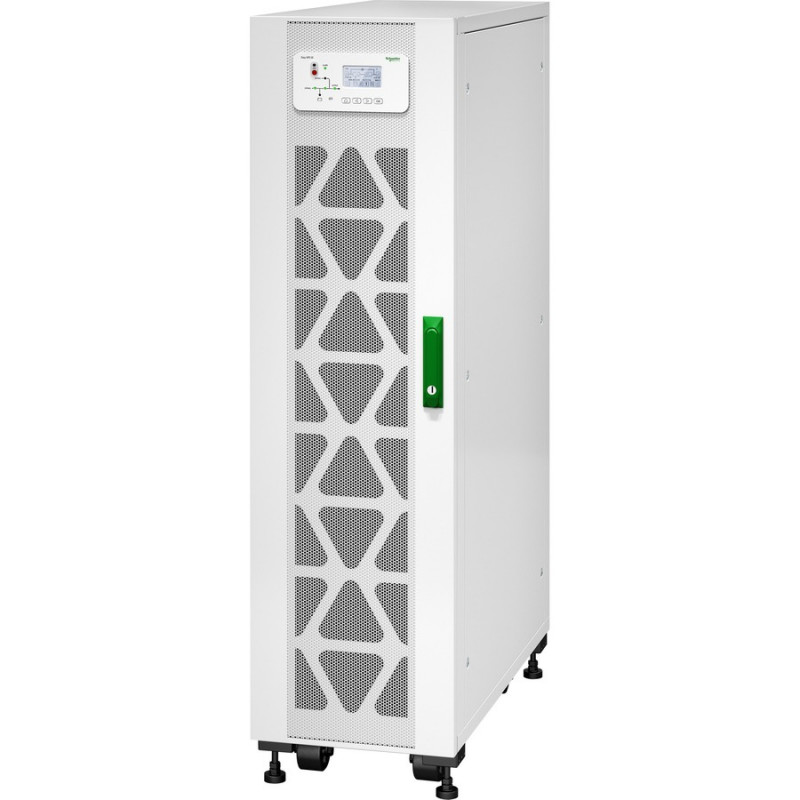

APC EASY UPS 3S 10KVA 400 V 3:1 UPS
$8,766.00
Including GST
APC by Schneider Electric Easy UPS 3S Double Conversion Online UPS - 10 kVA - Three Phase - Tower - 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC Output
10-40kVA, 400V easy-to-install, easy-to-use, and easy-to-service 3 phase UPS for small and medium data centers and other business critical applications.
The Schneider Electric Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide operating temperature window and strong overload protection, all in a compact and lightweight footprint. With its exceptional combination of low Total Cost of Ownership, competitive specifications, and ease of installation, use, and service, the Schneider Electric Easy UPS 3S is the easy choice for your business continuity. Schneider Electric recommends purchasing Start-Up Service to optimize your system's performance, quality, and safety.
Battery Information
| DC System Voltage | 240 V DC |
| Battery Characteristics | Sealed Lead Acid (SLA) |
Environmental Conditions
| Environmental Sensors | Temperature Sensor |
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -25°C - 55°C |
| Maximum Operating Elevation | 984.30 m |
| Maximum Storage Elevation | 15 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 60 dB(A) |
| Thermal Dissipation | 516 BTU/h |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | E3SUPS10K3IB |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | APC by Schneider Electric |
| Product Line | Easy UPS 3S |
| Product Name | Easy UPS 3S 10kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
Miscellaneous
| Environmentally Friendly | Yes |
Interfaces/Ports
| EPO Port | Yes |
Physical Characteristics
| Form Factor | Tower |
| Height | 1400 mm |
| Width | 380 mm |
| Depth | 907 mm |
| Weight (Approximate) | 130 kg |
Power Description
| Load Capacity | 10 kVA |
| Input Voltage | 380 V AC |
| 400 V AC | |
| 415 V AC | |
| Input Voltage Range | 304 V AC - 477 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
Technical Information
| Phase | Three Phase |
| Application/Usage | Data Center |
| Business |
Comments (0)
No customer reviews for the moment.
APC by Schneider Electric Easy UPS 3S Double Conversion Online UPS - 10 kVA - Three Phase - Tower - 380 V AC, 400 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC Output
