- Out-of-Stock
| MPN: | BR1600MI |
|---|

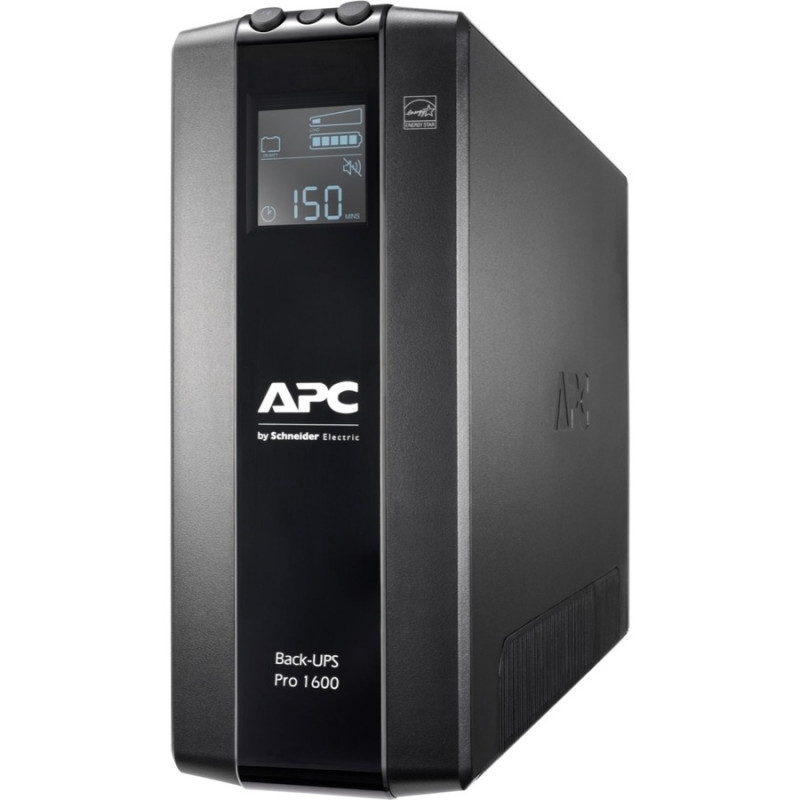

APC BACK UPS PRO BR 1600VA 8
$734.00
Including GST
Schneider Electric Back-UPS Pro BR1600MI Line-interactive UPS - 1.60 kVA/960 W - Tower - AVR - 16 Hour Recharge - 2.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13
Back-UPS Pro
High Performance Computer and Electronics UPS for Premium Power Protection
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
Controls/Indicators
| Status Indicators | LCD Status Display:
|
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Storage Temperature | -15°C - 45°C |
| Maximum Operating Elevation | 3 km |
| Maximum Storage Elevation | 15 km |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 21.50 BTU/h |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Website Address | http://www.schneider-electric.com.au |
| Brand Name | Schneider Electric |
| Product Line | Back-UPS Pro |
| Product Series | BR |
| Product Model | BR1600MI |
| Product Name | Back-UPS Pro BR1600MI 1.6KVA Tower UPS |
| Product Type | Line-interactive UPS |
Interfaces/Ports
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Environmentally Friendly | Yes |
Physical Characteristics
| Height | 100 mm |
| Width | 250 mm |
| Depth | 382 mm |
| Form Factor | Tower |
| Weight (Approximate) | 10.90 kg |
Power Description
| Load Capacity | 1.60 kVA/960 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 176 V AC - 294 V AC |
| Output Voltage | 230 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 509 J |
Battery Information
| Battery Characteristics | Maintenance-free, Sealed, Water-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.60 Minute |
| Backup/Run Time (Half Load) | 10.40 Minute |
| Typical Battery Recharge Time | 16 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
Management
| Alarm | Low Battery |
| Overload | |
| On Battery | |
| Replace Battery |
Technical Information
| AVR | Yes |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Number of Surge-only Outlets | 2 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Transfer Time | 0 ns |
| Application/Usage | Computer |
| Electronic | |
| Router | |
| Modem | |
| Storage Device | |
| Gaming Console | |
| Home | |
| Business | |
| Office | |
| Mission Critical Equipment | |
| Workstation | |
| Multimedia Device | |
| Smartphone | |
| Tablet | |
| Equipment | |
| Surveillance System |
Comments (0)
No customer reviews for the moment.
Schneider Electric Back-UPS Pro BR1600MI Line-interactive UPS - 1.60 kVA/960 W - Tower - AVR - 16 Hour Recharge - 2.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 8 x IEC 60320 C13
