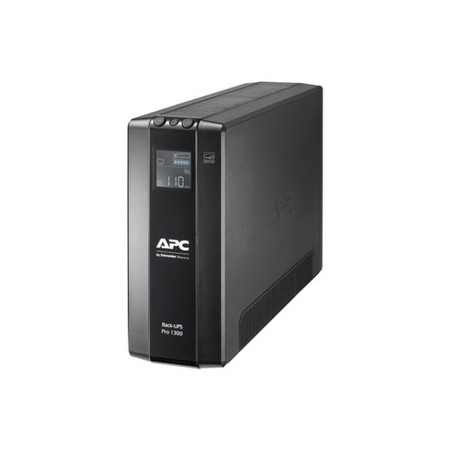

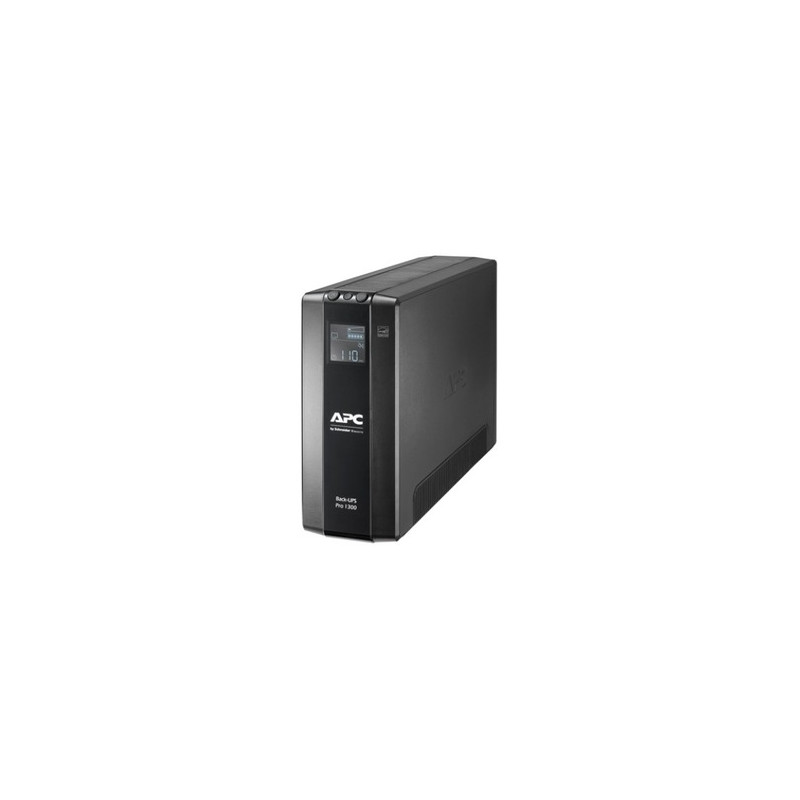

APC Back-UPS Pro provide battery backup and surge protection ideal for your home, home office or small business.
The new Back-UPS Pro models are equipped with premium features including increased runtime and power capability for your critical electronics.
Power and Protect
Battery backup & surge protector outlets
Keep valuable devices running when the power is outside of safe levels
Sinewave power output
Ensures power quality without distortion or power drop during an outage. Ideal for advanced workstations, high end PCs, multimedia devices and home storage
2 USB charging ports (Type C + Type A)
Fast charge mobile devices such as smartphones and tablets
AVR with boost and trim
Instantly corrects low/high voltage fluctuations and is Active Power Factor Correction (PFC) compatible
1Gb network protection
Safeguards your equipment and valuable files from "back door" surges traveling along data lines without sacrificing internet speed
User replaceable batteries
Allows you to quickly replace batteries LCD interface Quick and easy to read, provides information about the utility and UPS conditions
Powerchute personal edition
Easy-to-use auto-shutdown software with power and energy management features
3-year warranty
Three-year limited warranty with a lifetime Equipment Protection Policy up to €150,00
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
APC by Schneider Electric |
| Product Line |
Back-UPS Pro |
| Product Series |
BR |
| Product Model |
BR1300MI |
| Product Name |
Back-UPS Pro BR1300MI 1300VA Tower UPS |
| Product Type |
Line-interactive UPS |
Interfaces/Ports
| Network (RJ-45) |
Yes |
| USB (HID Compliant) Port |
Yes |
Management
| Alarm |
On Battery |
| Low Battery |
| Replace Battery |
| Overload |
Physical Characteristics
| Height |
100 mm |
| Width |
250 mm |
| Depth |
382 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
10.20 kg |
Power Description
| Load Capacity |
1.30 kVA/780 W |
| Input Voltage |
230 V AC |
| Input Voltage Range |
176 V AC - 294 V AC |
| Output Voltage |
230 V AC |
| Input Frequency |
60 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Stepped Approximated Sine Wave |
Battery Information
| Battery Characteristics |
Valve-regulated |
| Battery Chemistry |
Lead Acid |
| Hot Swappable |
Yes |
| Replaceable Battery |
Yes |
Controls/Indicators
| Status Indicators |
LCD Interface:
- Utility conditions
- UPS conditions
|
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Storage Temperature |
-15°C - 45°C |
| Maximum Operating Elevation |
3 km |
| Maximum Storage Elevation |
15 km |
| Operating Humidity |
0% - 95% |
| Storage Relative Humidity |
0% - 95% |
| Sound Emission |
45 dB |
Technical Information
| AVR |
Yes |
| Plug/Connector Type |
IEC 60320 C14 |
| Receptacle Type |
IEC 60320 C13 |
| Receptacle Detail |
8 x IEC 60320 C13 |
| Number of Battery & Surge Outlets |
6 |
| Number of Surge-only Outlets |
2 |
| Dataline Protection |
RJ-45 |
| Overload Protection |
Yes |
| Application/Usage |
Home |
| SOHO Office |
| Business |
| Workstation |
| Desktop Computer |
| Multimedia Device |
| Electronic Equipment |
