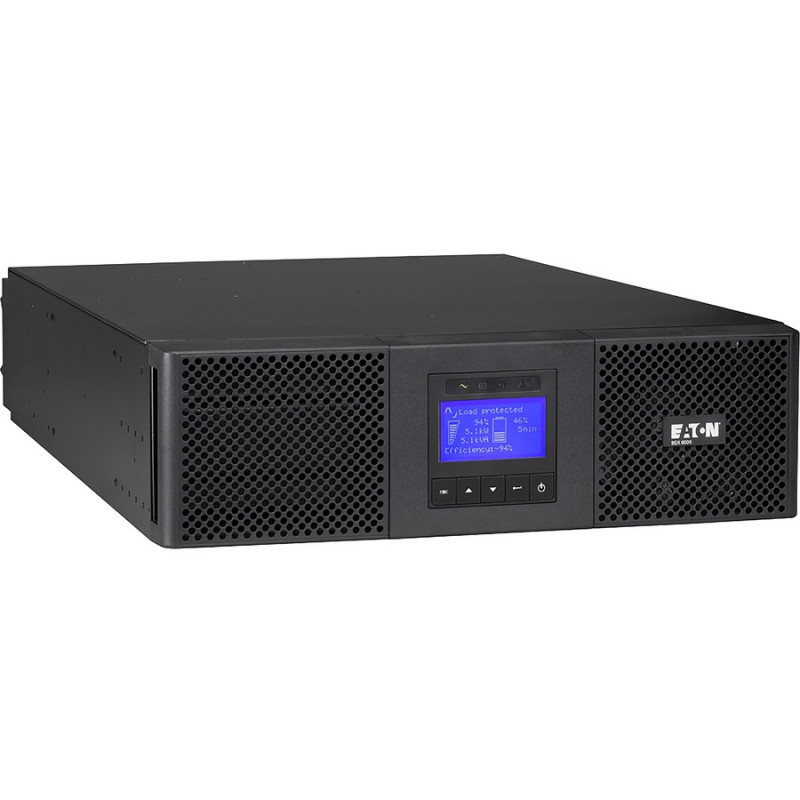

Eaton 9SX (700VA-6kVA) UPS
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower or rack format
Controls/Indicators
| Status Indicators |
- LED Indicators
- Multilingual Graphical LCD Display
|
Interfaces/Ports
| Serial Port |
Yes |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
Physical Characteristics
| Height |
575 mm |
| Width |
244 mm |
| Depth |
542 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
65.50 kg |
Power Description
| Load Capacity |
6 kVA/5.40 kW |
| Input Voltage |
230 V AC |
| Input Voltage Range |
120 V AC - 276 V AC |
| Output Voltage |
200 V AC |
| 208 V AC |
| 220 V AC |
| 230 V AC |
| 240 V AC |
| Input Frequency |
70 Hz |
| Output Frequency |
60 Hz |
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Sound Emission |
46 dB |
General Information
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
9SX6KI-AU |
| Manufacturer Website Address |
http://www.eatoncorp.com.au |
| Brand Name |
Eaton |
| Product Series |
9SX |
| Product Name |
9SX 6000VA Tower UPS |
| Product Type |
Double Conversion Online UPS |
Management
| Network Management |
SNMP Manageable |
Technical Information
| Plug/Connector Type |
Hardwired |
| Receptacle Type |
Hardwired |
| Application/Usage |
Industry |
| Medical |
| IT System |
| Network |
| Storage Device |
| Telecommunication |
Warranty
