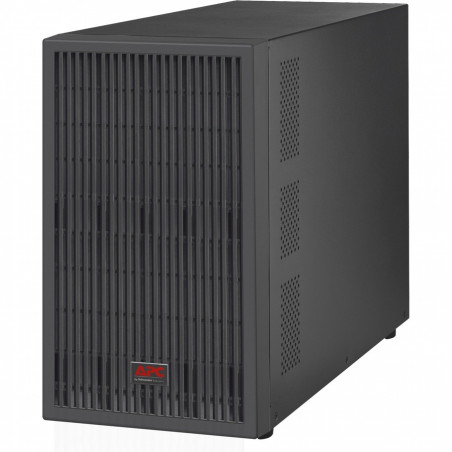

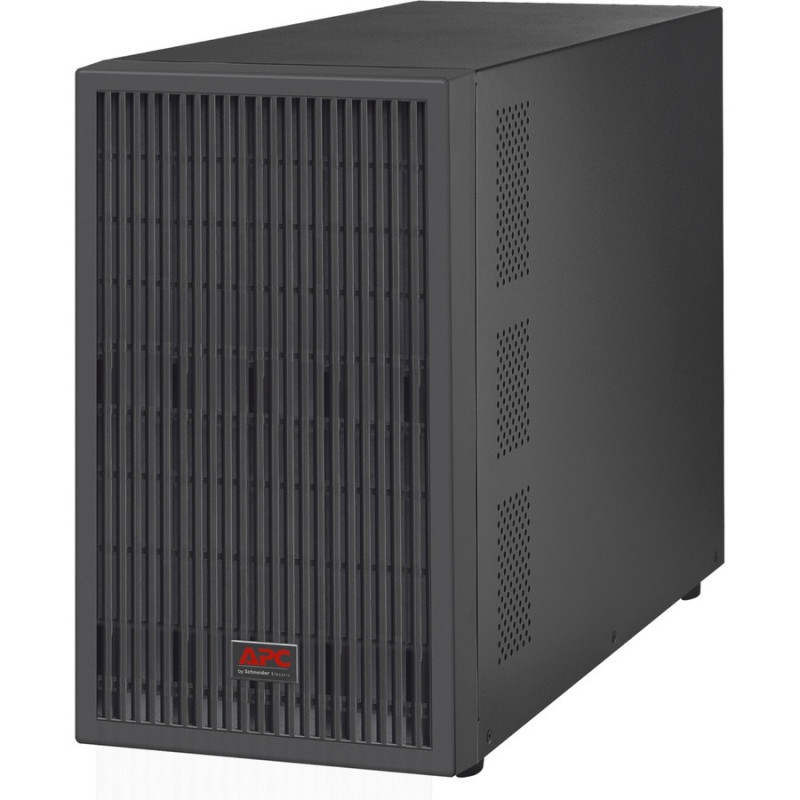

Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
SRV2KIL |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
APC by Schneider Electric |
| Product Line |
Easy UPS |
| Product Series |
SRV |
| Product Model |
SRV2KIL |
| Product Name |
Easy UPS SRV2KIL 2KVA Tower UPS |
| Product Type |
Double Conversion Online UPS |
Interfaces/Ports
| Serial Port |
Yes |
| EPO Port |
No |
| USB (HID Compliant) Port |
Yes |
Physical Characteristics
| Height |
238 mm |
| Width |
145 mm |
| Depth |
400 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
16.80 kg |
Power Description
| Load Capacity |
2 kVA/1.60 kW |
| Input Voltage |
230 V AC |
| Input Voltage Range |
160 V AC - 280 V AC |
| Output Voltage |
220 V AC |
| 230 V AC |
| 240 V AC |
| Input Frequency |
70 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Sine Wave |
| Surge Energy Rating |
600 J |
Battery Information
| Number of Batteries |
1 |
| Battery Characteristics |
Maintenance-free, Sealed, Water-proof |
| Battery Chemistry |
Lead Acid |
| Typical Battery Recharge Time |
4 Hour |
| Replaceable Battery |
Yes |
Controls/Indicators
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Maximum Operating Elevation |
3 km |
| Maximum Storage Elevation |
14.76 km |
| Operating Humidity |
0% - 95% |
| Storage Relative Humidity |
0% - 95% |
Management
| Alarm |
Battery Mode |
| Battery Level |
| Overload |
Miscellaneous
| Environmentally Friendly |
Yes |
Technical Information
| Plug/Connector Type |
IEC 60320 C14 |
| Receptacle Type |
IEC 60320 C13 |
| Receptacle Detail |
4 x IEC 60320 C13 |
| Transfer Time |
0 ns |
| Phase |
Single Phase |
| Application/Usage |
Business |
| Server |
| Desktop Computer |
| Workstation |
| Industrial Equipment |
| Communication System |
