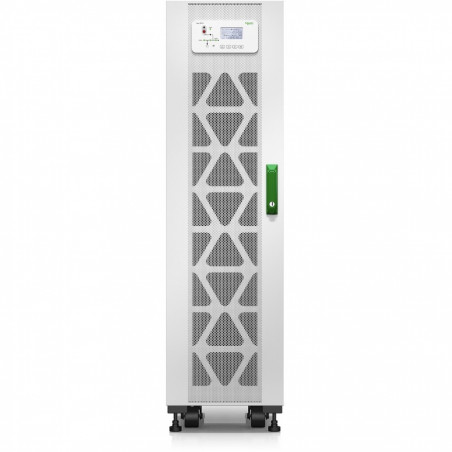

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
E3SUPS15KHB |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
Schneider Electric |
| Product Line |
Easy UPS 3S |
| Product Name |
Easy UPS 3S 15 kVA 400 V 3:3 UPS for Internal Batteries |
| Product Type |
Double Conversion Online UPS |
Interfaces/Ports
| USB (HID Compliant) Port |
Yes |
Miscellaneous
| Package Contents |
Easy UPS 3S 15 kVA 400 V 3:3 UPS for Internal Batteries |
| Dust Filter |
| Installation Guide |
| Environmentally Friendly |
Yes |
| Environmental Certification |
REACH |
| EU RoHS |
| China RoHS |
Warranty
| Limited Warranty |
1 Year |
| Additional Warranty Information |
1 year on-site repair or replace with factory authorized Start-Up |
Battery Information
| Battery Characteristics |
Valve Regulated Lead Acid (VRLA) |
Physical Characteristics
| Product Color |
White |
| Form Factor |
Tower |
| Height |
1400 mm |
| Width |
380 mm |
| Depth |
928 mm |
| Weight (Approximate) |
112 kg |
Power Description
| Load Capacity |
15 kVA/15 kW |
| Input Voltage |
400 V AC |
| Input Voltage Range |
304 V AC - 477 V AC |
| Output Voltage |
400 V AC |
| 415 V AC |
| 380 V AC |
| Output Frequency |
60 Hz |
Technical Information
| Phase |
Three Phase |
| Application/Usage |
Datacenter |
| Electrical Room |
