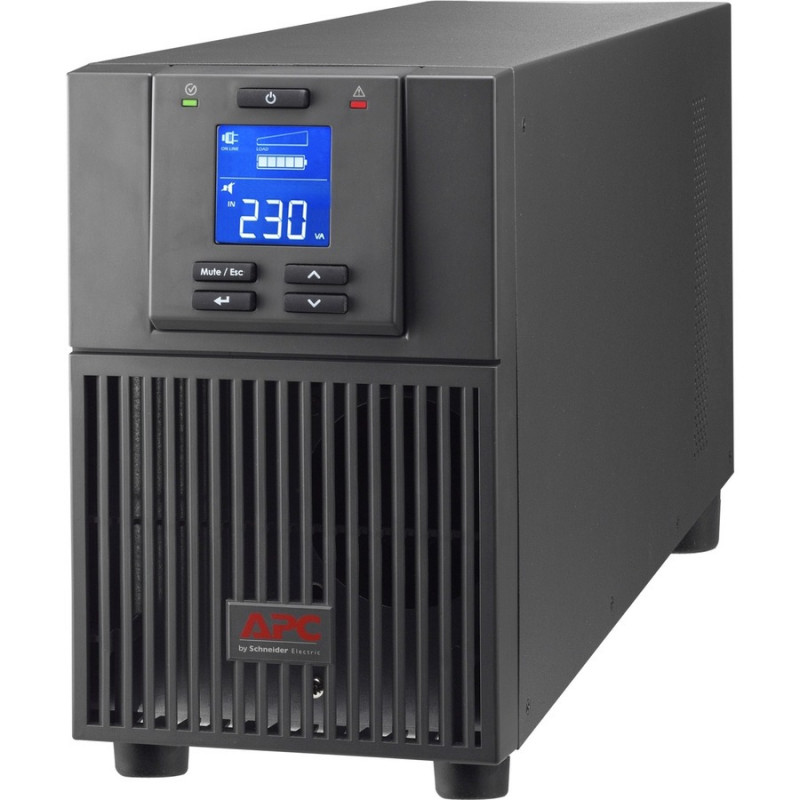

Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
Battery Information
| DC System Voltage |
12 V DC |
| Number of Batteries |
4 |
| Battery Characteristics |
Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry |
Lead Acid |
| Battery Size |
12V |
| Battery Capacity |
9000 mAh |
| Backup/Run Time (Full Load) |
4 Minute |
| Backup/Run Time (Half Load) |
10 Minute |
| Typical Battery Recharge Time |
4 Hour |
| Replaceable Battery |
Yes |
Environmental Conditions
| Maximum Operating Temperature |
40°C |
| Storage Temperature |
-20°C - 50°C |
| Maximum Operating Elevation |
3 km |
| Maximum Storage Elevation |
14.76 km |
| Operating Humidity |
0% - 95% |
| Storage Relative Humidity |
0% - 95% |
Management
| Alarm |
On Battery |
| Low Battery |
| Overload |
Miscellaneous
| Environmentally Friendly |
Yes |
Technical Information
| Plug/Connector Type |
IEC 60320 C14 |
| Receptacle Type |
IEC 60320 C13 |
| Receptacle Detail |
4 x IEC 60320 C13 |
| Transfer Time |
0 ns |
| Phase |
Single Phase |
| Application/Usage |
Business |
Controls/Indicators
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
SRV2KI |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
APC by Schneider Electric |
| Product Line |
Easy UPS |
| Product Model |
SRV2KI |
| Product Name |
Easy UPS SRV 2000VA 230V |
| Product Type |
Double Conversion Online UPS |
Interfaces/Ports
| Serial Port |
Yes |
| EPO Port |
No |
| USB (HID Compliant) Port |
Yes |
Physical Characteristics
| Height |
238 mm |
| Width |
145 mm |
| Depth |
400 mm |
| Form Factor |
Tower |
| Weight (Approximate) |
16.80 kg |
Power Description
| Load Capacity |
2 kVA/1.60 kW |
| Input Voltage |
230 V AC |
| Input Voltage Range |
160 V AC - 280 V AC |
| Output Voltage |
220 V AC |
| 230 V AC |
| 240 V AC |
| Input Frequency |
70 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Sine Wave |
| Surge Energy Rating |
600 J |
