- Out-of-Stock
| MPN: | DGS-712 |
|---|

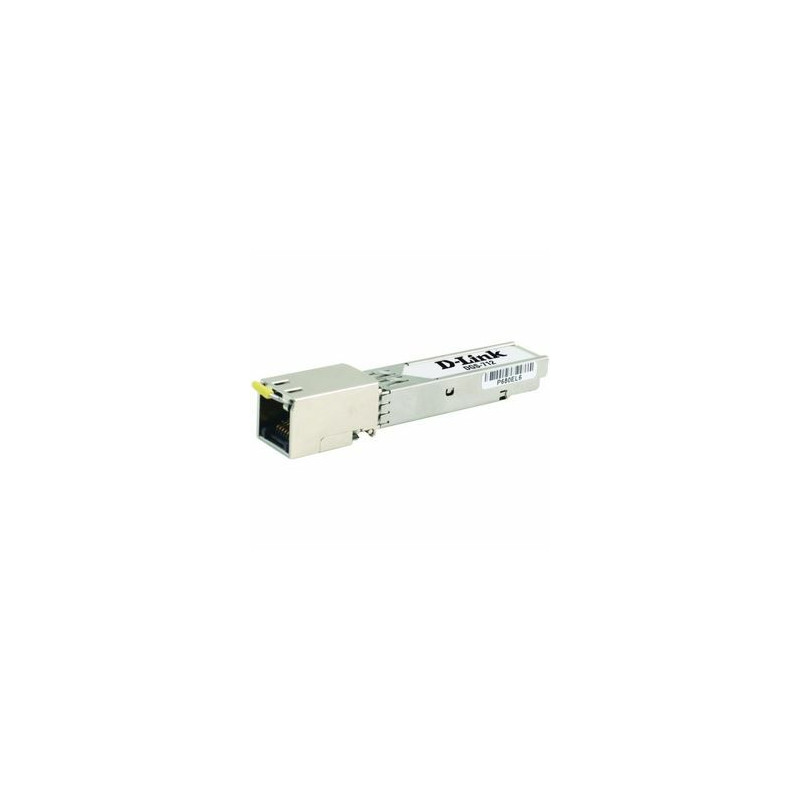

D-LINK 1000TX SFP (Mini-GBIC) MOD
$147.00
Including GST
D-Link SFP - 1 x RJ-45 1000Base-T Auto MDI/MDI-X
The D-Link DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement (MSA). It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3z and IEEE Std 802.3ab. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
General Information
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-712 |
| Manufacturer Website Address | http://www.dlink.com.au |
| Brand Name | D-Link |
| Product Name | 1000BASE-T Copper SFP Transceiver |
| Product Type | SFP |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
| Maximum Distance Supported | 100 m |
| Maximum Data Transfer Rate | 1 |
Physical Characteristics
| Form Factor | Hot-pluggable |
Interfaces/Ports
| Total Number of Ports | 1 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 1 x RJ-45 1000Base-T Auto MDI/MDI-X |
Miscellaneous
| Additional Information | 10/100/1000 BASE-T operation in host systems with SGMII interface |
| Up to 1.25Gb/s bi-directional data links | |
| Extended case temperature range | |
| Fully metallic enclosure for low EMI | |
| Low power dissipation (typical 1.2 watts) | |
| +3.3V electrical power interface | |
| Compatibility |
Technical Information
| Application/Usage | Data Networking |
