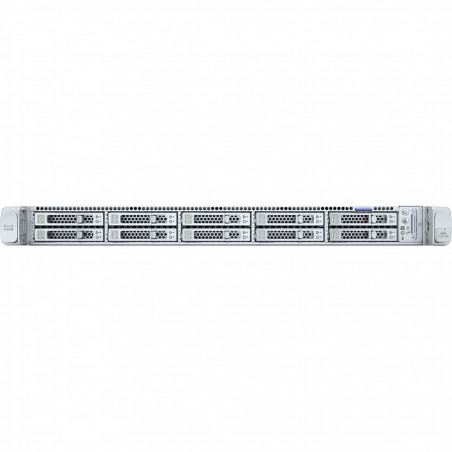

Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).
Chipset
| Chipset Manufacturer |
Intel |
| Chipset Model |
C621A |
Controllers
| Controller Type |
12Gb/s SAS |
| Serial ATA/600 |
Display & Graphics
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200e |
| Graphics Memory Capacity |
8 MB |
General Information
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
HX-E-220M6S |
| Manufacturer Website Address |
http://www.cisco.com/c/en_au |
| Brand Name |
Cisco |
| Product Line |
HyperFlex |
| Product Name |

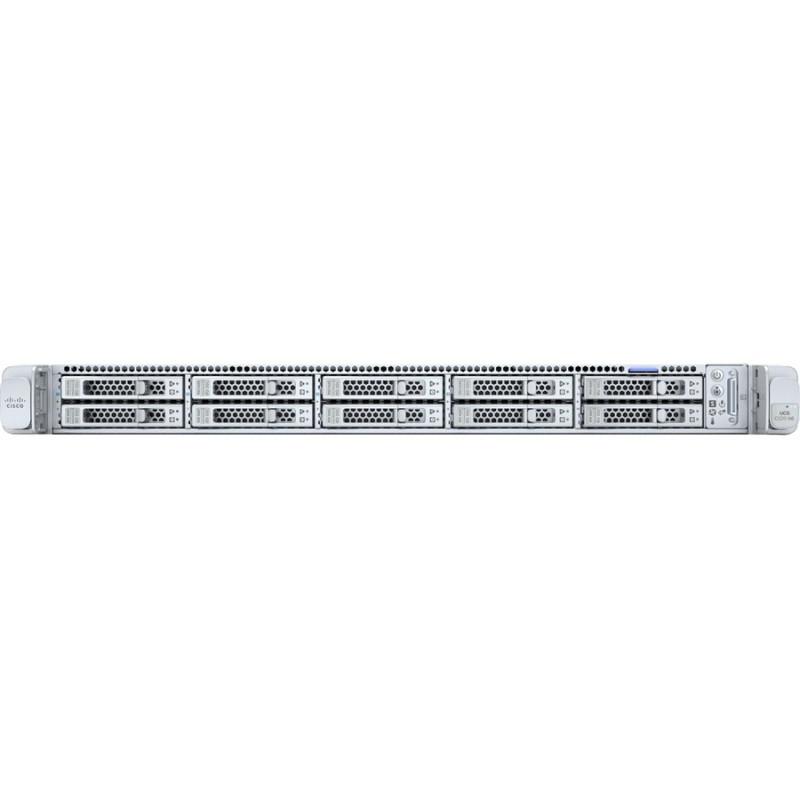

HyperFlex HX220 M6 Edge Barebone System |
| Product Type |
Barebone System |
Memory
| Maximum Memory Supported |
4 TB |
| Memory Technology |
DDR4 SDRAM |
| Memory Standard |
DDR4-3200/PC4-25600 |
| Number of Total Memory Slots |
32 |
Power Description
| Input Voltage |
120 V AC |
| 230 V AC |
I/O Expansions
| Number of Total Expansion Bays |
10 |
| Number of Internal 2.5" Bays |
10 |
Interfaces/Ports
| Total Number of USB Ports |
2 |
| Number of USB 3.0 Ports |
2 |
| Number of VGA Ports |
1 |
Network & Communication
| Ethernet Technology |
10 Gigabit Ethernet |
Physical Characteristics
| Form Factor |
Rack-mountable |
| Rack Height |
1U |
| Height |
43.2 mm |
| Width |
429.3 mm |
| Depth |
762 mm |
Processor
| Number of Processors Supported |
2 |
| Processor Supported |
Xeon Platinum |
| Xeon Gold |
| Xeon Silver |
| Xeon Bronze |
| 64-bit Processing |
Yes |
Storage
| Supported Storage Drive Interfaces |
SAS-3 |
| Serial ATA III |
