Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).
HyperFlex Edge operates using existing top of rack 1GE or 10/25GE switching with options for both single and dual switch configurations. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.

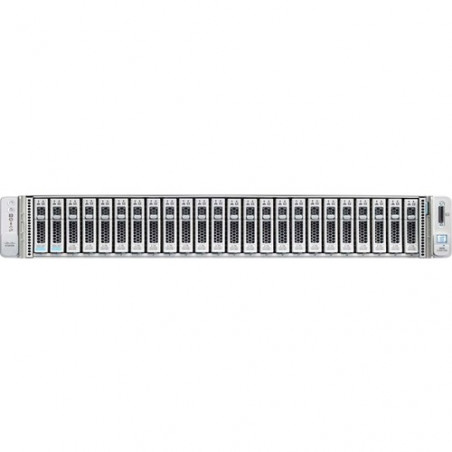

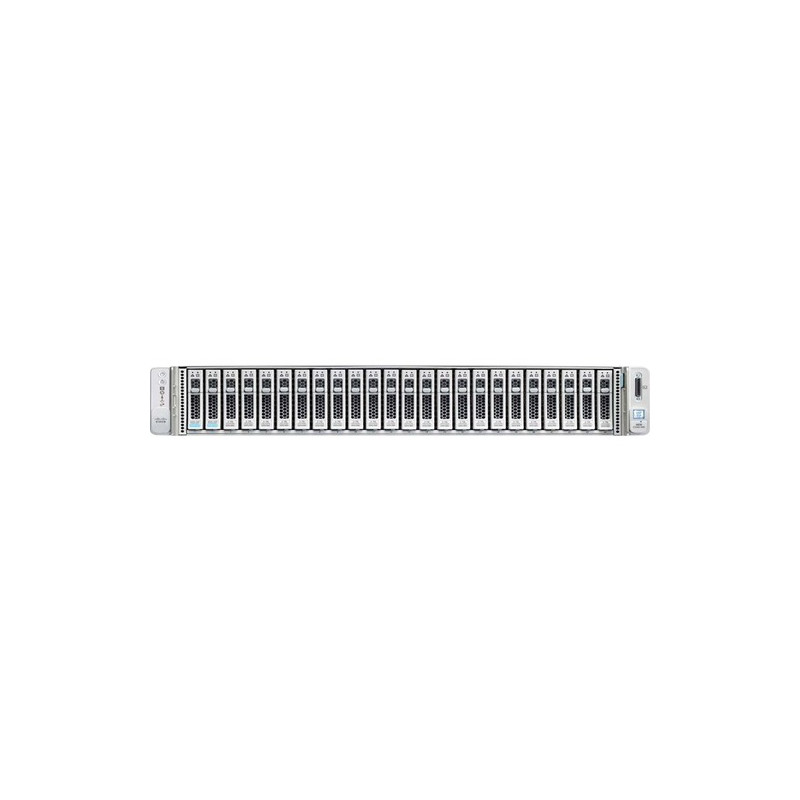

The HyperFlex HXAF-E-240/HX-E-240 M5 Edge server extends the capabilities of Cisco's HyperFlex portfolio in a 2U form factor with the addition of the 2nd Gen Intel® Xeon® Scalable Processors, 12 DIMM slots per CPU for 2933-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB.
Controllers
| Controller Type |
12Gb/s SAS |
| RAID Supported |
Yes |
Display & Graphics
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200e |
| Graphics Memory Capacity |
16 MB |
General Information
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
HX-E-240-M5SX |
| Manufacturer Website Address |
http://www.cisco.com/c/en_au |
| Brand Name |
Cisco |
| Product Line |
HyperFlex |
| Product Series |
HX240 M5 |
| Product Model |
HyperFlex HX240 M5 Edge |
| Product Name |
HyperFlex HX240 M5 Edge Barebone System |
| Product Type |
Barebone System |
Network & Communication
| Ethernet Technology |
10 Gigabit Ethernet |
Operating System
| Operating System Supported |
Windows Server 2019 Datacenter |
| Windows Server 2019 Standard |
Processor
| Number of Processors Supported |
2 |
| Processor Supported |
Xeon |
Chipset
| Chipset Manufacturer |
Intel |
| Chipset Model |
C621 |
I/O Expansions
| Number of Total Expansion Bays |
2 |
| Number of Internal 2.5" Bays |
2 |
Interfaces/Ports
| Total Number of USB Ports |
2 |
| Number of USB 3.0 Ports |
2 |
| Number of VGA Ports |
1 |
Memory
| Maximum Memory Supported |
3 TB |
| Memory Technology |
DDR4 SDRAM |
| Number of Total Memory Slots |
24 |
Physical Characteristics
| Form Factor |
Rack-mountable |
| Rack Height |
2U |
| Height |
87.1 mm |
| Width |
481.6 mm |
| Depth |
766.6 mm |
| Weight (Approximate) |
17.01 kg |
Power Description
| Input Voltage |
120 V AC |
| 230 V AC |
