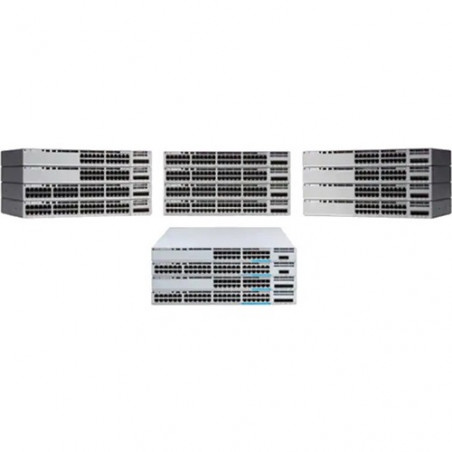

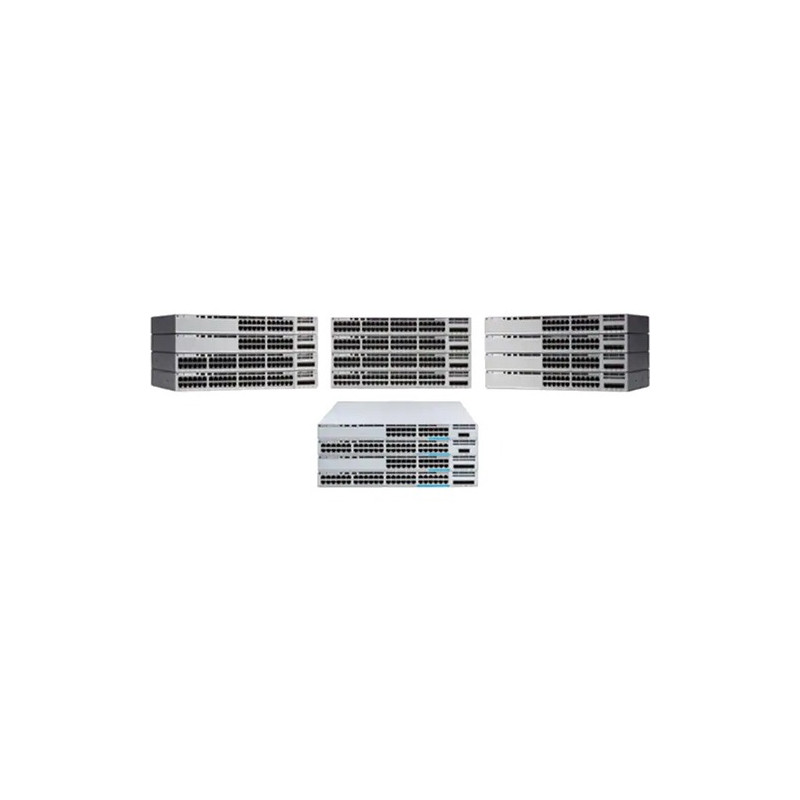

CISCO Catalyst 9200 48-port Partial PoE+
search
  • CISCO Catalyst 9200 48-port Partial PoE+
MPN:C9200-48PL-A

CISCO Catalyst 9200 48-port Partial PoE+

$8,314.00
Including GST
Cisco Catalyst 9200 C9200-48PL 48 Ports Manageable Layer 3 Switch - 3 Layer Supported - Modular - 600 W Power Consumption - 370 W PoE Budget - Twisted Pair - PoE Ports - Rack-mountable
Quantity
Out-of-Stock

Extend intent-based networking everywhere

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number C9200-48PL-A
Manufacturer Website Address http://www.cisco.com/c/en_au
Brand Name Cisco
Product Line Catalyst
Product Series 9200
Product Model C9200-48PL
Product Name Catalyst 9200L48-port partial PoE+ 4x1G uplink Switch, Network Advantage
Product Type Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports 48
Uplink Port Yes
Modular Yes
Stack Port Yes
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology Gigabit Ethernet
10 Gigabit Ethernet
Network Technology 1000Base-T
10GBase-X
Network & Communication
Layer Supported 3
I/O Expansions
Number of Total Expansion Slots 1
Expansion Slot Type Uplink Module
Management & Protocols
Manageable Yes
Physical Characteristics
Form Factor Rack-mountable
Height 43.9 mm
Width 444.5 mm
Depth 350.5 mm
Weight (Approximate) 5.50 kg
Power Description
PoE (RJ-45) Port Yes
PoE Budget 370 W
Frequency 50 Hz
60 Hz
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Power Consumption 600 W
Plug/Connector Type IEC 60320 C16
IEC 60320 C14
C15
