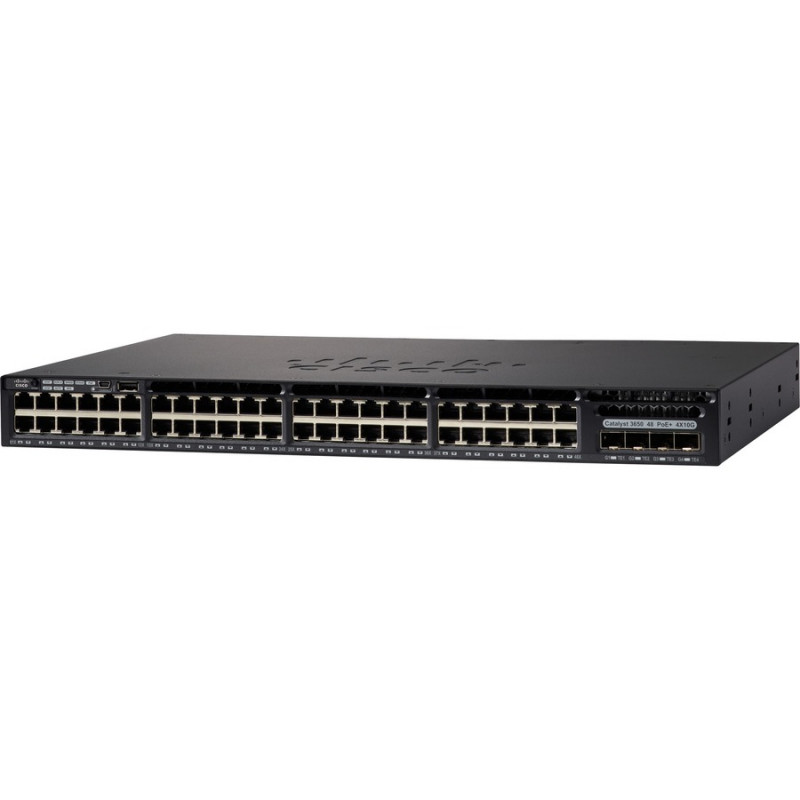

The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
General Information
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
C1-WS3650-48FQM/K9 |
| Manufacturer Website Address |
http://www.cisco.com/c/en_au |
| Brand Name |
Cisco |
| Product Line |
Catalyst |
| Product Series |
3650 |
| Product Model |
WS-C3650-48FQ |
| Product Name |
Catalyst WS-C3650-48FQ Ethernet Switch |
| Product Type |
Ethernet Switch |
Network & Communication
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Height |
43.9 mm |
| Width |
485.8 mm |
| Depth |
444.5 mm |
| Weight (Approximate) |
7.80 kg |
Power Description
| Power Source |
Power Supply |
I/O Expansions
| Number of Total Expansion Slots |
4 |
| Expansion Slot Type |
SFP+ |
| Number of SFP+ Slots |
4 |
Interfaces/Ports
| Total Number of Network Ports |
48 |
| Uplink Port |
Yes |
| Modular |
No |
| Stack Port |
No |
| Port/Expansion Slot Details |
48 x Gigabit Ethernet Network |
| 4 x 10 Gigabit Ethernet Uplink |
Management & Protocols
Media & Performance
| Media Type Supported |
Twisted Pair |
| Optical Fiber |
| Ethernet Technology |
Gigabit Ethernet |
| 10 Gigabit Ethernet |
| Network Technology |
1000Base-T |
| 10GBase-X |
