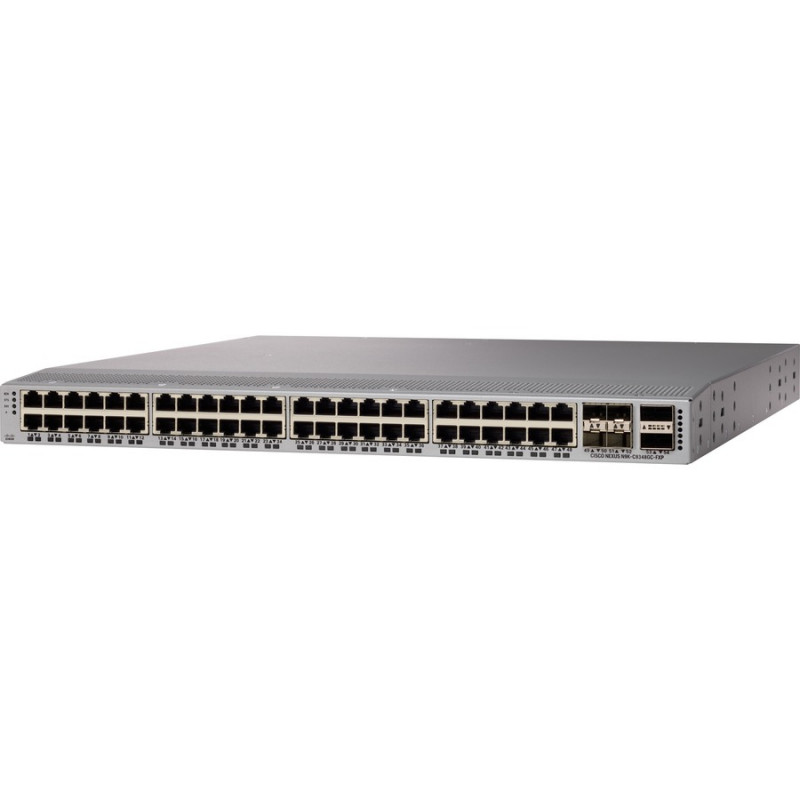

The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the 9348GC-FXP can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports. The Cisco Nexus 9348GC-FXP is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching.
General Information
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
N9K-C9348GC-FXP |
| Manufacturer Website Address |
http://www.cisco.com/c/en_au |
| Brand Name |
Cisco |
| Product Line |
Nexus |
| Product Series |
9300 |
| Product Model |
9348GC-FXP |
| Product Name |
Nexus 9348GC-FXP Ethernet Switch |
| Product Type |
Ethernet Switch |
I/O Expansions
| Number of Total Expansion Slots |
6 |
| Expansion Slot Type |
QSFP28 |
| SFP28 |
| Shared SFP Slot |
No |
Management & Protocols
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Height |
43.7 mm |
| Width |
439.4 mm |
| Depth |
500.4 mm |
| Weight (Approximate) |
6.44 kg |
Interfaces/Ports
| Total Number of Network Ports |
48 |
| Uplink Port |
No |
| Modular |
Yes |
| Stack Port |
No |
| Port/Expansion Slot Details |
48 x Gigabit Ethernet Network |
| 4 x 25 Gigabit Ethernet Expansion Slot |
| 2 x 100 Gigabit Ethernet Expansion Slot |
Media & Performance
| Media Type Supported |
Optical Fiber |
| Twisted Pair |
| Ethernet Technology |
Gigabit Ethernet |
| 25 Gigabit Ethernet |
| 100 Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| 25GBase-T |
| 100GBase-X |
Miscellaneous
| Environmentally Friendly |
Yes |
Network & Communication
Power Description
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
Yes |
