The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210 Series uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.
General Information
| Manufacturer |
D-Link Systems, Inc |
| Manufacturer Part Number |
DGS-1210-28 |
| Manufacturer Website Address |
http://www.dlink.com.au |
| Brand Name |
D-Link |
| Product Line |
WebSmart |
| Product Series |
DGS-1210 |
| Product Model |
DGS-1210-28 |
| Product Name |

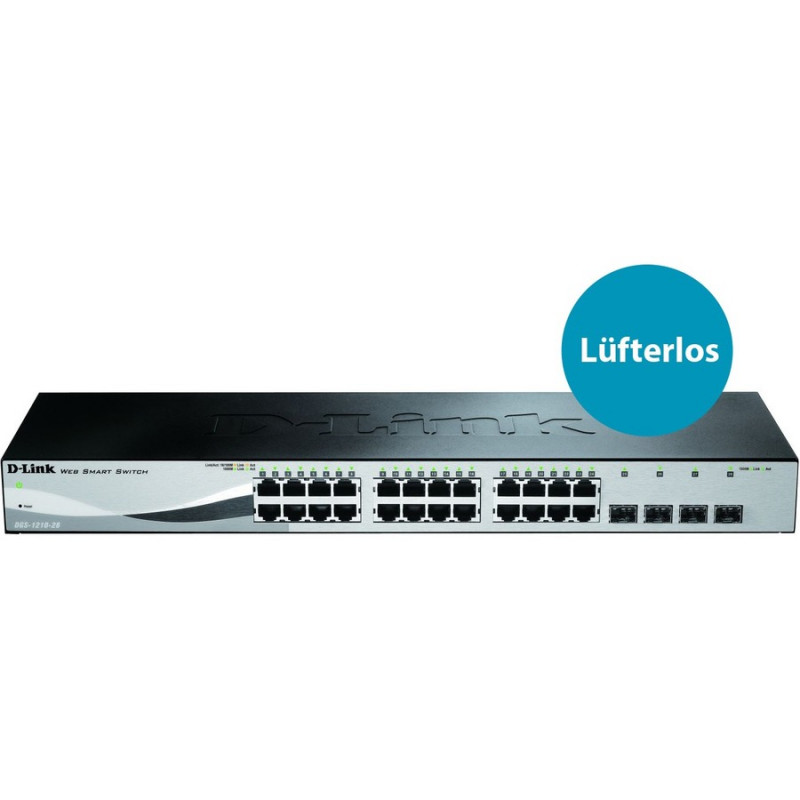

WebSmart DGS-1210-28 Ethernet Switch |
| Product Type |
Ethernet Switch |
I/O Expansions
| Number of Total Expansion Slots |
4 |
| Expansion Slot Type |
SFP |
| Number of SFP Slots |
4 |
Management & Protocols
| Manageable |
Yes |
| Management |
Web-Based Management |
| Command Line Interface |
| SNMP |
| RMON |
| Syslog |
| Telnet |
| VLAN |
| QoS |
| MIB |
Media & Performance
| Media Type Supported |
Twisted Pair |
| Optical Fiber |
| Ethernet Technology |
Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| 1000Base-X |
Network & Communication
Power Description
| PoE (RJ-45) Port |
No |
| Power Source |
Power Supply |
| Redundant Power Supply Supported |
No |
Interfaces/Ports
| Total Number of Network Ports |
24 |
| Token Ring Port |
No |
| LRE Port |
No |
| Bypass |
No |
| Modular |
No |
| Number of Network (RJ-45) Ports |
24 |
| Port/Expansion Slot Details |
24 x Gigabit Ethernet Network |
| 4 x Gigabit Ethernet Expansion Slot |
Memory
| Standard Memory |
128 MB |
| Memory Technology |
DDR2 SDRAM |
| Flash Memory |
16 MB |
Miscellaneous
| Certifications & Standards |
IEEE 802.3 |
| IEEE 802.3u |
| IEEE 802.3ab |
| IEEE 802.3az |
| IEEE 802.3at |
| IEEE 802.3x |
| IEEE 802.3z |
| IEEE 802.1w |
| IEEE 802.1D |
| IEEE 802.3ad |
| IEEE 802.1p |
| FCC class A |
| CE Class A |
| VCCI Class A |
| IC Class A |
| cUL |
| LVD |
| CE |
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Desktop |
| Rack-mountable |
