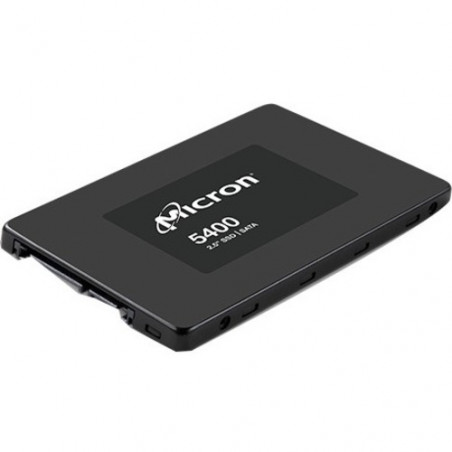

The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
Drive Performance
| Maximum Read Transfer Rate |
540 MB/s |
| Maximum Write Transfer Rate |
520 MB/s |
| Random 4KB Read |
95000IOPS |
| Random 4KB Write |
37000IOPS |
| Endurance (DWPD) |
1.5 |
| Endurance (TBW) |
1324 TB |
| Endurance Type |
Read Intensive |
Interfaces/Ports
| Drive Interface |
SATA |
| Drive Interface Standard |
SATA/600 |
Miscellaneous
| Compatibility |
ThinkSystem Servers: - SE450 (7D8T)
- ST250 V2 (7D8G / 7D8F)
- SR250 V2 (7D7R / 7D7Q)
|
| Device Supported |
Server |
Technical Information
| Storage Capacity |
480 GB |
| Encryption Standard |
256-bit AES |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
4XB7A82259 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
5400 PRO |
| Product Name |

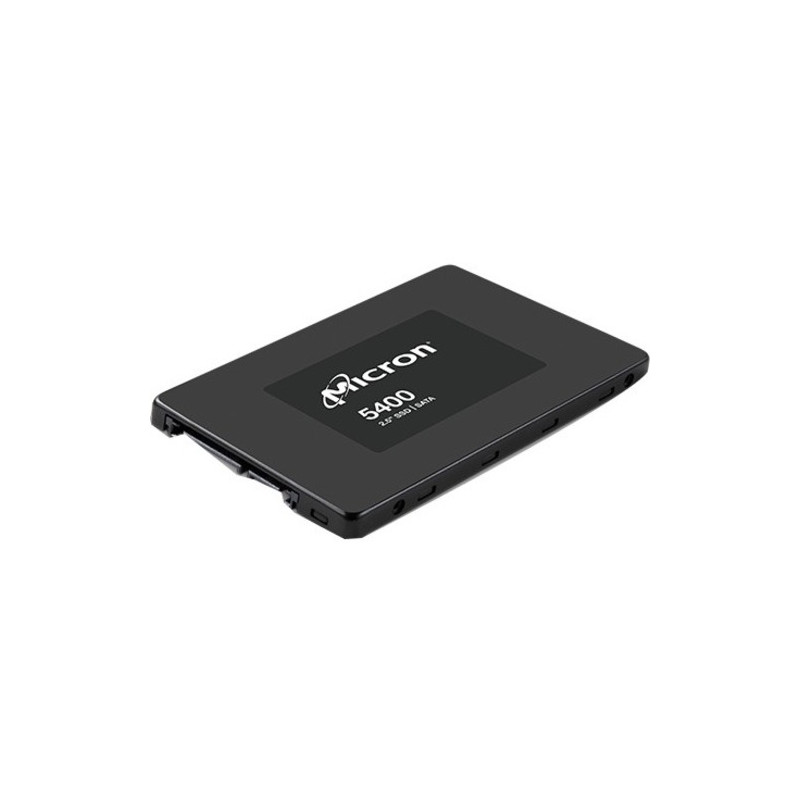

ThinkSystem 2.5" 5400 PRO 480GB Read Intensive SATA 6Gb HS SSD |
| Product Type |
Solid State Drive |
Network & Communication
Physical Characteristics
| Drive Type |
Internal |
| Form Factor |
2.5" |
| Hot Swappable |
Yes |
| Height |
7 mm |
| Width |
70 mm |
| Depth |
100 mm |
| Weight (Approximate) |
70 g |
