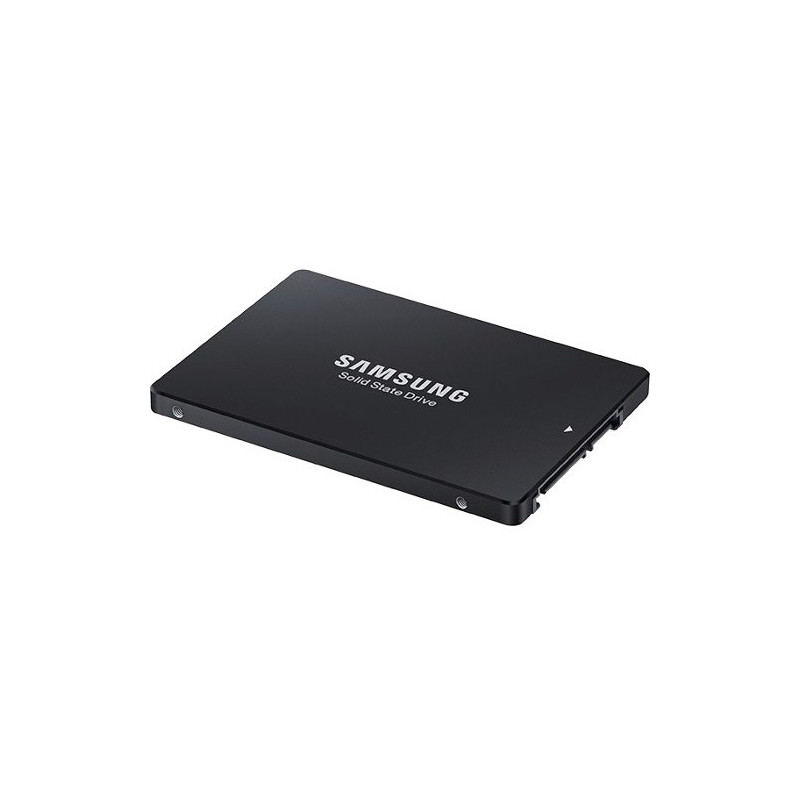

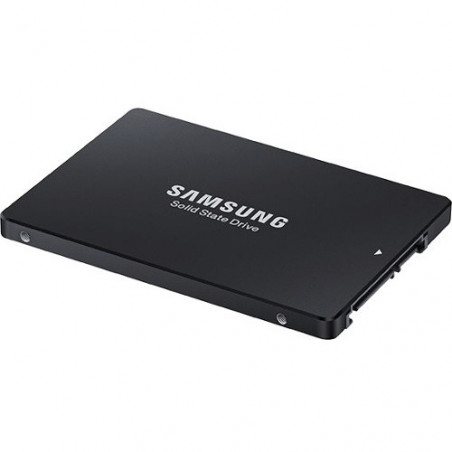

The Lenovo PM1635a Enterprise Mainstream 12Gb SAS solid-state drives (SSDs) in capacities of up to 3.2 TB capacity are next-generation high-performance SSDs suitable for a wide range of applications running on both System x and ThinkServer platforms.
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
7N47A00120 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
PM1635a |
| Product Name |
ThinkSystem 2.5" PM1635a 3.2TB Mainstream SAS 12Gb Hot Swap SSD |
| Packaged Quantity |
1 |
| Product Type |
Solid State Drive |
Miscellaneous
| Compatibility |
Lenovo ThinkServer Server: - SR570 (7Y02/7Y03)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR850 (7X18/7X19)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- SN550 (7X16)
- SN850 (7X15)
|
| Device Supported |
Server |
Power Description
| Operating Power Consumption |
9 W |
Drive Performance
| Maximum Read Transfer Rate |
940 MB/s |
| Maximum Write Transfer Rate |
780 MB/s |
Interfaces/Ports
| Drive Interface |
SAS |
| Drive Interface Standard |
12Gb/s SAS |
Physical Characteristics
| Drive Type |
Internal |
| Form Factor |
2.5" |
| Hot Swappable |
Yes |
