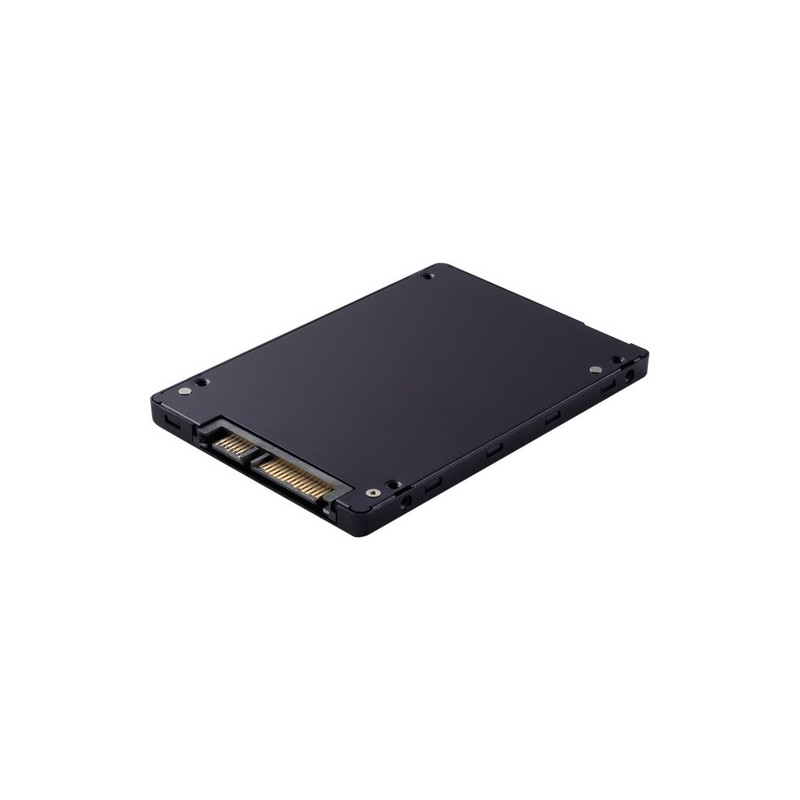

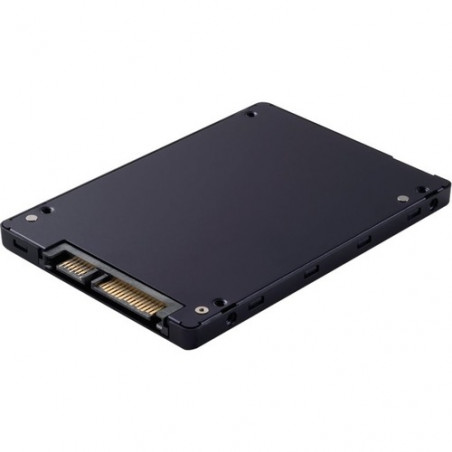

The ThinkSystem 5200 Entry SATA 6Gb solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Federal Information Processing Standard 140-2 (FIPS 140-2) cryptographic standard. They use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for secure read-intensive workloads.
Drive Performance
| Maximum Read Transfer Rate |
540 MB/s |
| Maximum Write Transfer Rate |
385 MB/s |
| Endurance (DWPD) |
1 |
| Endurance (TBW) |
870 TB |
| Endurance Type |
Read Intensive |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
4XB7A13966 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
5200 |
| Product Name |
ThinkSystem 2.5" 5200 480GB Entry SATA 6Gb Hot Swap SSD SED |
| Product Type |
Solid State Drive |
Interfaces/Ports
| Drive Interface |
SATA |
| Drive Interface Standard |
SATA/600 |
Power Description
| Operating Power Consumption |
3.10 W |
Miscellaneous
| Compatibility |
Lenovo ThinkSystem Servers:
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
|
| Environmentally Friendly |
Yes |
| Device Supported |
Server |
Network & Communication
Physical Characteristics
| Drive Type |
Internal |
| Drive Carrier Width |
2.5" |
| Hot Swappable |
Yes |
| Height |
7 mm |
| Width |
70 mm |
| Depth |
100 mm |
| Weight (Approximate) |
70 g |
Technical Information
| Storage Capacity |
480 GB |
| Encryption Standard |
256-bit |
