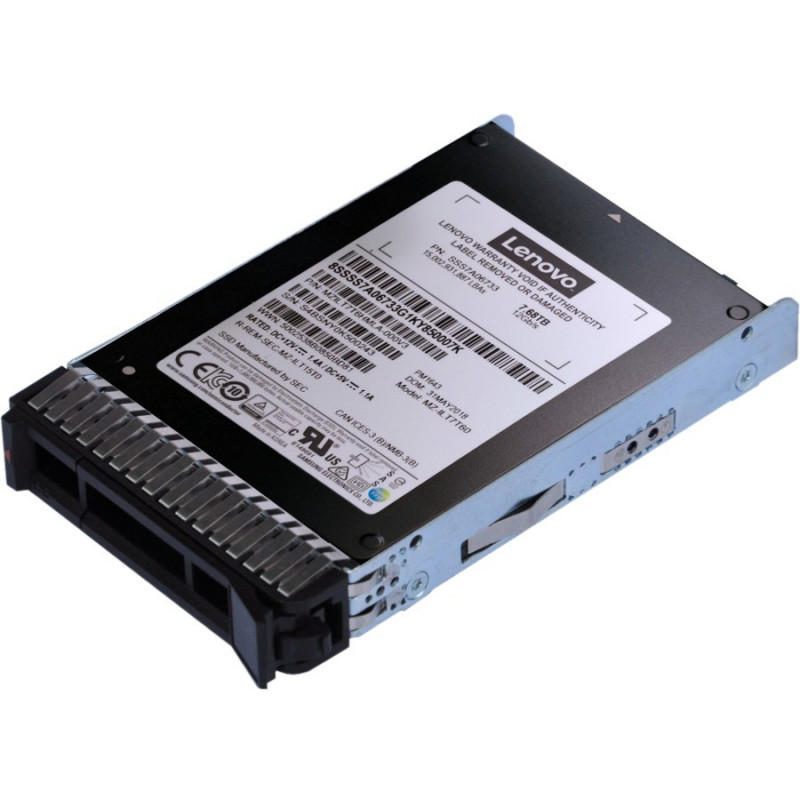

The ThinkSystem PM1643 Capacity SAS 12Gb solid-state drives (SSDs) are next-generation high-capacity SSDs suitable for a wide range of applications. The PM1643 Capacity SAS SSDs are designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
The PM1643 SSDs are the follow-on to the PM1633a SSDs and offer significantly improved performance, both for random and sequential workloads.
Drive Performance
| Maximum Read Transfer Rate |
2050 MB/s |
| Maximum Write Transfer Rate |
1200 MB/s |
| Endurance (DWPD) |
1 |
| Endurance (TBW) |
7008 TB |
| Endurance Type |
Read Intensive |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
4XB7A13665 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
PM1643 |
| Product Name |
PM1643 3.84TB Enterprise Capacity 12Gb SAS G3HS 2.5" SSD |
| Packaged Quantity |
1 |
| Product Type |
Solid State Drive |
Interfaces/Ports
| Drive Interface |
SAS |
| Drive Interface Standard |
12Gb/s SAS |
Power Description
| Operating Power Consumption |
9 W |
Miscellaneous
| Package Contents |
PM1643 3.84TB Enterprise Capacity 12Gb SAS G3HS 2.5" SSD |
| Documentation Flyer |
| Compatibility |
Lenovo System x Servers:
- x3650 M5 (8871)
- x3850 X6/x3950 X6 (6241, E7 v4)
|
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Device Supported |
Server |
Network & Communication
Physical Characteristics
| Drive Type |
Internal |
| Form Factor |
2.5" |
| Drive Carrier |
Yes |
| Height |
15 mm |
| Width |
70 mm |
| Depth |
100 mm |
| Weight (Approximate) |
158 g |
Technical Information
Warranty
