The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S3520 series, these new drives offer improved performance and lower latency. The S4500 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
4XB0N68511 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
DC S4500 |
| Product Name |

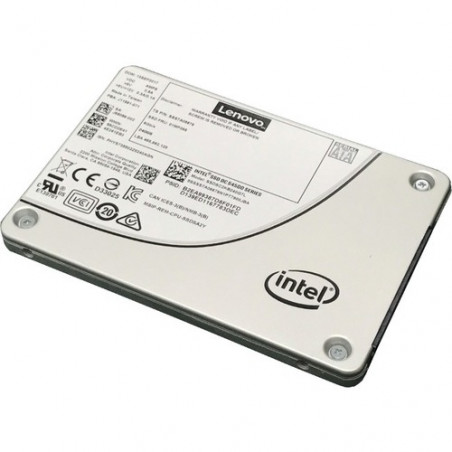

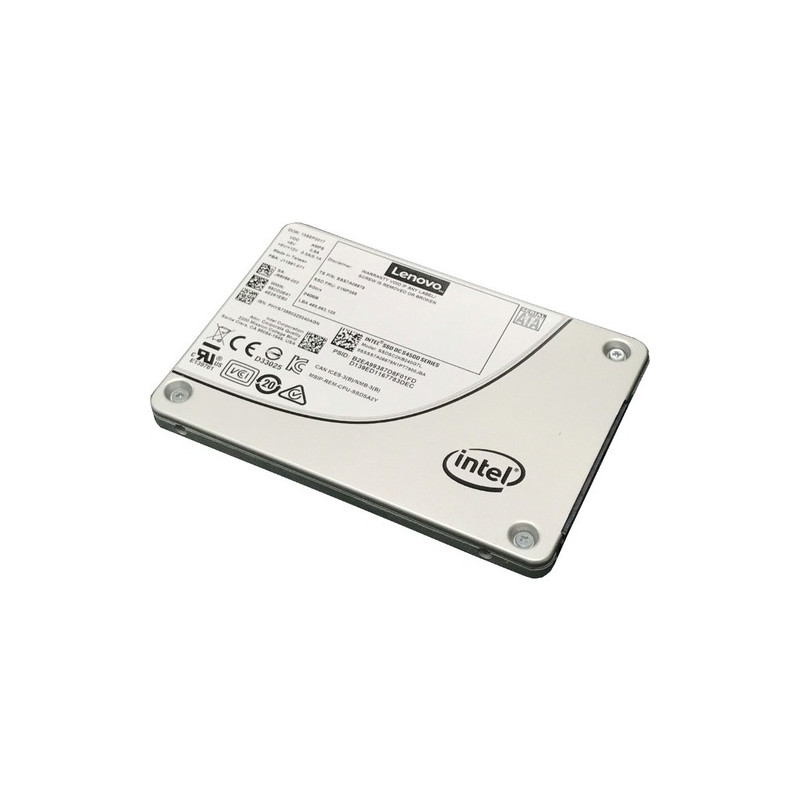

ThinkServer 2.5" S4500 480GB Enterprise Entry SATA 6Gbps SSD for RS-Series |
| Product Type |
Solid State Drive |
Interfaces/Ports
| Drive Interface |
SATA |
| Drive Interface Standard |
SATA/600 |
Network & Communication
Technical Information
| Storage Capacity |
480 GB |
| Encryption Standard |
256-bit |
Drive Performance
| Maximum Read Transfer Rate |
500 MB/s |
| Maximum Write Transfer Rate |
330 MB/s |
Miscellaneous
| Compatibility |
| Environmentally Friendly |
Yes |
| Device Supported |
Server |
Physical Characteristics
| Drive Type |
Internal |
| Form Factor |
2.5" |
| Hot Swappable |
Yes |
| Height |
7 mm |
| Width |
70 mm |
| Depth |
100 mm |
| Weight (Approximate) |
63 g |
Power Description
| Operating Power Consumption |
3.60 W |
