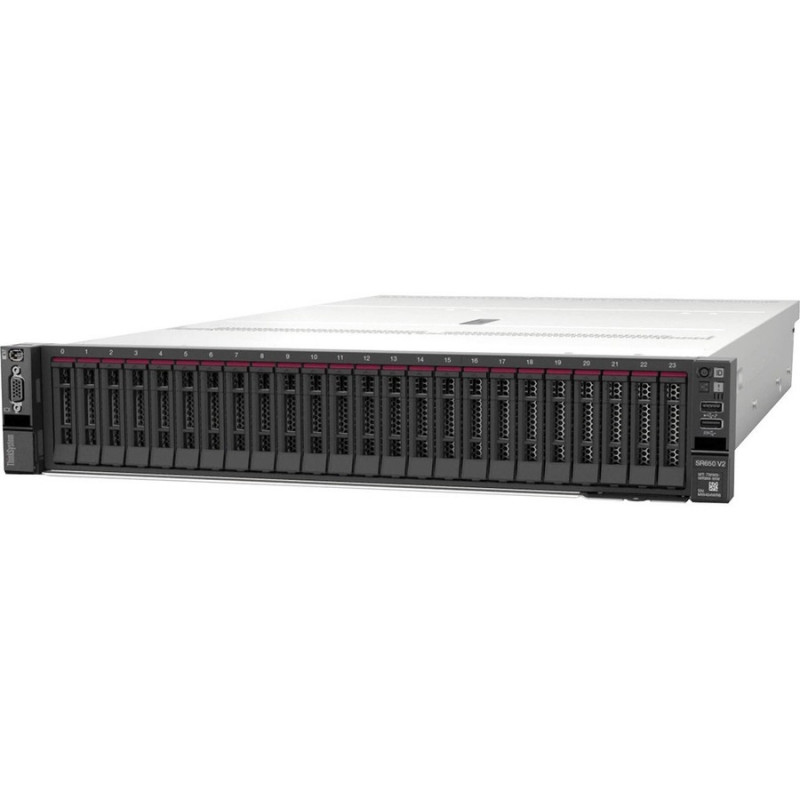

The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Controllers
| Controller Type |
Serial ATA/600 |
| 12Gb/s SAS |
| RAID Supported |
Yes |
Display & Graphics
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200 |
| Graphics Memory Capacity |
16 MB |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
7Z73A03WAU |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Line |
ThinkSystem |
| Product Series |
SR650 V2 |
| Product Model |
7Z73A03WAU |
| Product Name |
ThinkSystem SR650 V2 7Z73A03WAU Server |
| Product Type |
Server |
Operating System
| Operating System Supported |
Windows Server 2016 |
| Windows Server 2019 |
| Red Hat Enterprise Linux 7.9 |
| Red Hat Enterprise Linux 8.2 |
| Red Hat Enterprise Linux 8.3 |
| SUSE Linux Enterprise Server 12 SP5 |
| SUSE Linux Enterprise Server 15 SP2 |
| Operating System |
No |
Physical Characteristics
| Form Factor |
Rack |
| Rack Height |
2U |
| Height |
86.4 mm |
| Width |
444.5 mm |
| Depth |
764.5 mm |
| Weight (Approximate) |
38.80 kg |
Processor
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Manufacturer |
Intel |
| Processor Type |
Xeon Silver |
| Processor Model |
4309Y |
| Processor Core |
Octa-core (8 Core) |
| Processor Speed |
2.80 GHz |
| Cache |
12 MB |
Storage
Warranty
Chipset
| Chipset Manufacturer |
Intel |
| Chipset Model |
C621A |
I/O Expansions
| Number of Total Expansion Bays |
8 |
| Number of Internal 2.5" Bays |
8 |
| Number of SFF Bays |
8 |
| Number of Total Expansion Slots |
3 |
| PCI Express Details |
3 (x16, x8, x8) Gen4 |
Interfaces/Ports
| Total Number of USB Ports |
6 |
| Number of USB 2.0 Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| VGA |
Yes |
| Number of VGA Ports |
1 |
| Remote Management |
Yes |
| Remote Management Controller |
XCC remote management |
Memory
| Standard Memory |
16 GB |
| Memory Technology |
TruDDR4 |
| Memory Clock Speed |
3.20 GHz |
| Error Checking |
ECC |
| Number of Total Memory Slots |
32 |
| Number of Occupied Memory Slots |
1 |
| Intel Optane Memory Ready |
Yes |
Miscellaneous
| Security Features |
Chassis Intrusion Switch |
| Power-on Password |
| Administrator's Password |
| Trusted Platform Module (TPM), supporting TPM 2.0 |
| Energy Star |
Yes |
| Environmentally Friendly |
Yes |
| Environmental Certification |
ENERGY STAR 3.0 |
| RoHS |
| EPEAT Bronze |
Network & Communication
| Ethernet Technology |
Gigabit Ethernet |
Power Description
| Input Voltage |
120 V AC |
| 230 V AC |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
1 |
| Plug/Connector Type |
C13 |
| Maximum Power Supply Wattage |
750 W |
