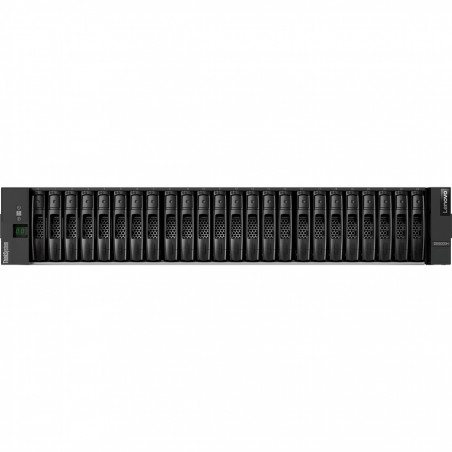

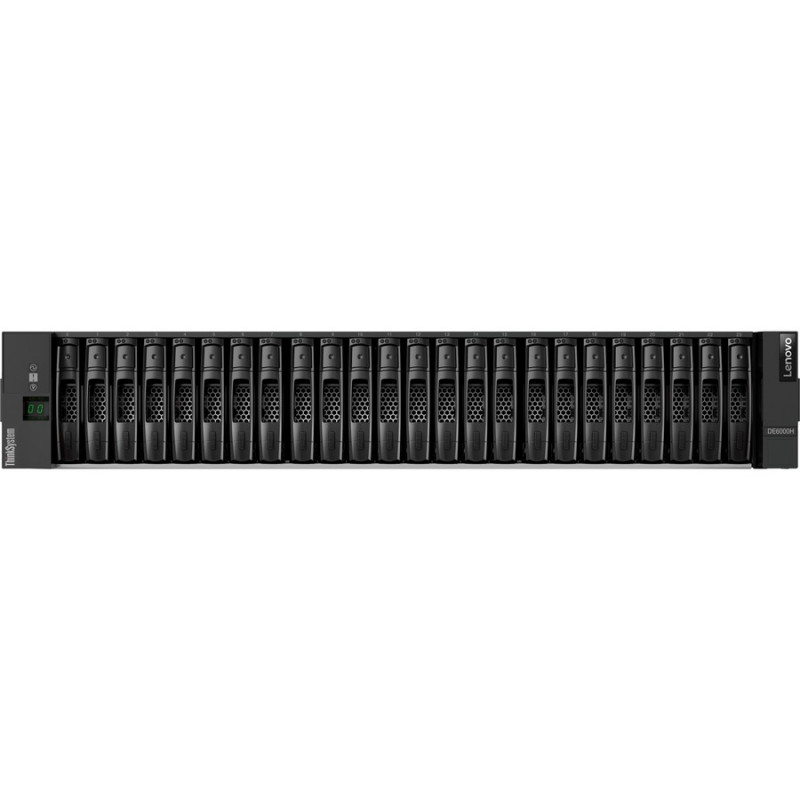

Lenovo ThinkSystem DE6000H is a scalable, hybrid mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE6000H delivers enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE6000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE6000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 16 GB cache for a system total of 32 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE6000H Storage Array scales up to 240 drives with the attachment of Lenovo ThinkSystem DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
7Y78A000WW |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Line |
ThinkSystem |
| Product Series |
DE |
| Product Model |
DE6000H |
| Product Name |
ThinkSystem DE6000H Hybrid Storage Array |
| Product Type |
DAS/SAN Storage System |
I/O Expansions
| Number of Total Expansion Bays |
24 |
| Number of 2.5" Bays |
24 |
Interfaces/Ports
| Host Interface |
12Gb/s SAS |
| Number of SAS Ports (External) |
12 |
| Fibre Channel |
Yes |
Network & Communication
| Ethernet Technology |
Gigabit Ethernet |
Storage
| Number of Hard Drives Supported |
24 |
| Number of Hard Drives Installed |
No |
| Number of Solid State Drive Supported |
24 |
| Number of Solid State Drive Installed |
No |
Controllers
| Number of Controllers |
2 |
| Controller Type |
12Gb/s SAS |
| RAID Supported |
Yes |
| RAID Levels |
0, 1, 3, 5, 6, 10 |
Management & Protocols
| Protocols |
FCP |
| SSH |
| SMI-S |
| SNMP |
| SSL |
| LDAP |
Miscellaneous
| Environmentally Friendly |
Yes |
Physical Characteristics
| Height |
85 mm |
| Width |
449 mm |
| Depth |
553 mm |
| Form Factor |
Rack-mountable |
| Rack Height |
2U |
Power Description
| Number of Power Supplies Installed |
2 |
| Maximum Power Supply Wattage |
913 W |
| Redundant Power Supply |
Yes |
