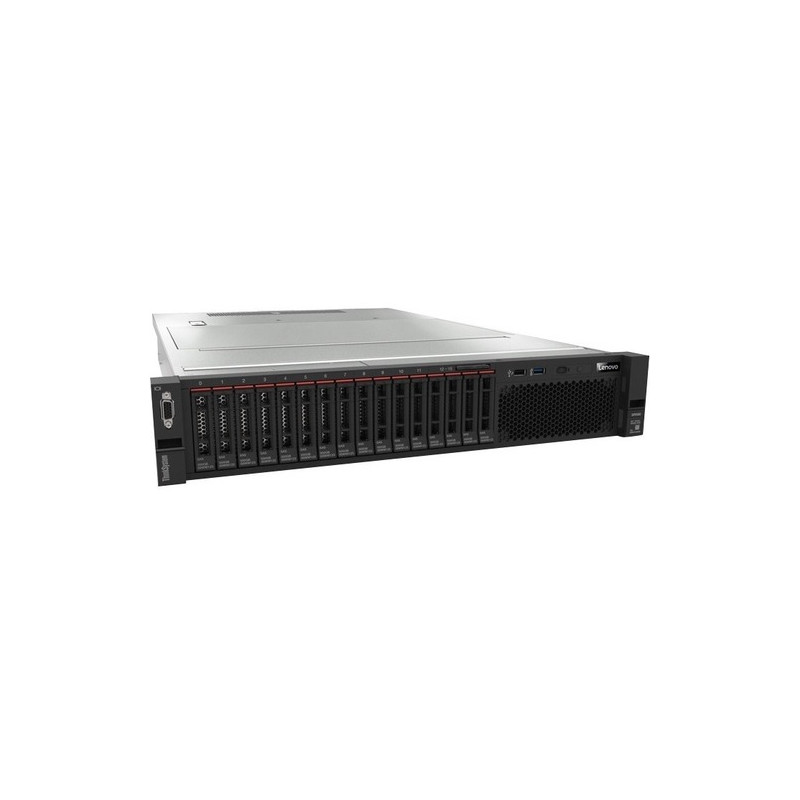

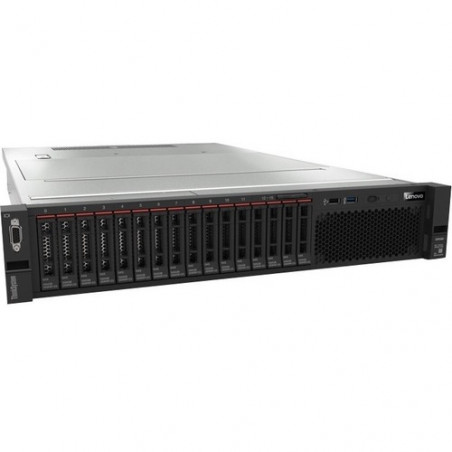

Lenovo ThinkSystem SR590 is a 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as balancing performance and expandability. The SR590 server is designed to handle a wide range of workloads, such as virtualization and cloud computing, IT infrastructure, enterprise applications, collaboration/email, and web serving.
Controllers
| Controller Type |
12Gb/s SAS |
| Serial ATA/600 |
| RAID Supported |
Yes |
| RAID Levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
7X99A03GAU |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Line |
ThinkSystem |
| Product Series |
SR590 |
| Product Model |
7X99A03GAU |
| Product Name |
ThinkSystem SR590 7X99A03GAU Server |
| Product Type |
Server |
Memory
| Standard Memory |
16 GB |
| Memory Technology |
TruDDR4 |
| Number of Total Memory Slots |
16 |
| Number of Occupied Memory Slots |
1 |
Network & Communication
| Ethernet Technology |
Gigabit Ethernet |
Power Description
| Input Voltage |
120 V AC |
| 230 V AC |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
1 |
| Maximum Power Supply Wattage |
750 W |
Storage
| Total Hard Drive Capacity |
No |
Display & Graphics
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200 |
| Graphics Memory Capacity |
16 MB |
I/O Expansions
| Number of Total Expansion Bays |
16 |
| Number of Internal 2.5" Bays |
16 |
| Hot Swappable Bays |
Yes |
Miscellaneous
| Package Contents |
- ThinkSystem SR590 7X99A03GAU Server
- Rack Installation Guide
- Electronic Publications Flyer
- Tool-less Rail Kit
- 2.8 m C13-C14 Rack Power Cable
|
| Certifications & Standards |
| Energy Star |
Yes |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| ENERGY STAR 2.1 |
Physical Characteristics
| Form Factor |
Rack |
| Rack Height |
2U |
| Height |
86.4 mm |
| Width |
444.5 mm |
| Depth |
718.8 mm |
| Weight (Approximate) |
26 kg |
Processor
| Number of Processors Supported |
2 |
| Number of Processors Installed |
1 |
| Processor Manufacturer |
Intel |
| Processor Type |
Xeon Silver |
| Processor Model |
4110 |
| Processor Core |
Octa-core (8 Core) |
| Processor Speed |
2.10 GHz |
