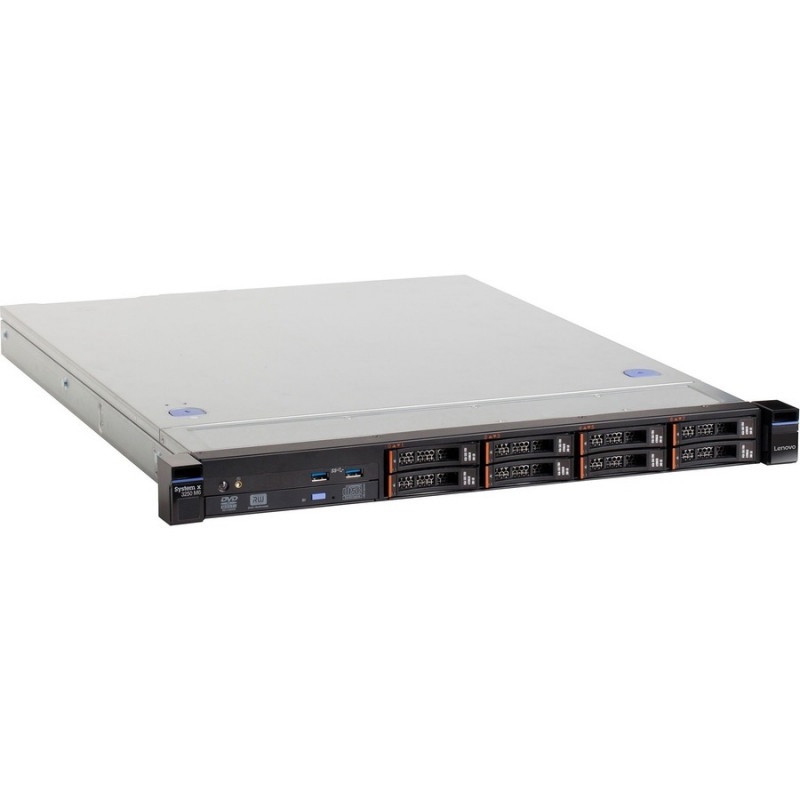

The Lenovo System x3250 M6 is an affordable, single-socket 1U rack solution for small and medium businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security.
The System x3250 M6 offers a wide range of processors - from Intel Celeron to Intel Xeon E3-1200 v6. With support for a memory capacity of up to 64 GB and internal storage of up to 40 TB, the x3250 M6 is ideal for small- to medium-sized business, workgroups, distributed locations, and webscale workloads.
Controllers
| Controller Type |
Serial ATA/600 |
| 12Gb/s SAS |
| RAID Supported |
Yes |
| RAID Levels |
0, 1, 10, JBOD |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
3633W7M |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Line |
System x |
| Product Series |
x3250 M6 |
| Product Model |
3633W7M |
| Product Name |
System x3250 M6 3633W7M Server |
| Product Type |
Server |
I/O Expansions
| Number of Total Expansion Bays |
9 |
| Number of External 5.25" Bays |
1 |
| Number of Internal 2.5" Bays |
8 |
| Hot Swappable Bays |
Yes |
Memory
| Standard Memory |
8 GB |
| Maximum Memory Supported |
64 GB |
| Memory Technology |
DDR4 SDRAM |
| Number of Total Memory Slots |
4 |
| Number of Occupied Memory Slots |
1 |
Miscellaneous
| Environmentally Friendly |
Yes |
Network & Communication
| Ethernet Technology |
Gigabit Ethernet |
Display & Graphics
| Graphics Controller Manufacturer |
Matrox |
| Graphics Controller Model |
G200eR2 |
| Graphics Memory Capacity |
16 MB |
Operating System
Physical Characteristics
| Form Factor |
Rack-mountable |
| Rack Height |
1U |
| Height |
43.2 mm |
| Width |
434.3 mm |
| Depth |
576.6 mm |
| Weight (Approximate) |
13.70 kg |
Power Description
| Input Voltage |
120 V AC |
| 230 V AC |
| Number of Power Supplies Supported |
2 |
| Number of Power Supplies Installed |
1 |
| Maximum Power Supply Wattage |
460 W |
Processor
| Number of Processors Supported |
1 |
| Number of Processors Installed |
1 |
| Processor Manufacturer |
Intel |
| Processor Type |
Xeon |
| Processor Model |
E3-1270 v6 |
| Processor Core |
Quad-core (4 Core) |
| Processor Speed |
3.80 GHz |
Storage
| Total Hard Drive Capacity |
No |
