- Out-of-Stock
| MPN: | DSFI |
|---|

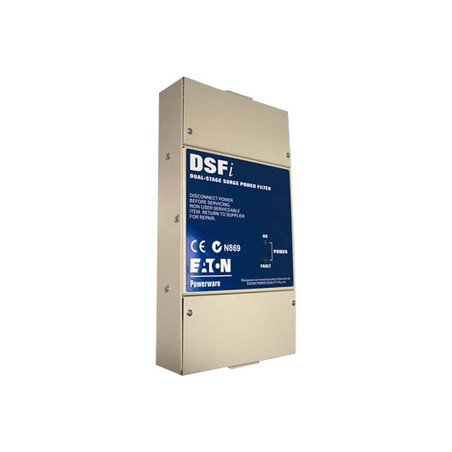

EATON 5-32A Dual Stage Surge Filter
$494.00
Including GST
Eaton DSFI Surge Suppressor/Protector - 2225 J - 250 V AC Input - 250 V AC Output
The DSFi provides secondary protection against power surges caused by external sources such as lightning strikes and substation switching as well as providing protection from surge events generated on the secondary side of the filter. Its 3-stage protection unit utilises primary and secondary MOV protection in conjunction with a Low-Q LC filter. In addition, the unit also provide filtering of the line harmonics, noise and RF transmitters.
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DSFI |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Brand Name | Eaton |
| Product Model | DSFI |
| Product Name | DSFI Surge Suppressor |
| Product Type | Surge Suppressor/Protector |
Miscellaneous
| Additional Information | |
| Compatibility | Telecommunication System Rectifiers |
| Process and Control System UPSs up to 6kVA |
Warranty
| Limited Warranty | 5 Year |
Physical Characteristics
| Height | 270 mm |
| Width | 145 mm |
| Depth | 47 mm |
| Weight (Approximate) | 1.50 kg |
Power Description
| Input Voltage | 250 V AC |
| Output Voltage | 250 V AC |
| Maximum Line Current | 32 A |
| Maximum Surge Current | 50 kA |
| Surge Energy Rating | 2225 J |
Comments (0)
No customer reviews for the moment.
Eaton DSFI Surge Suppressor/Protector - 2225 J - 250 V AC Input - 250 V AC Output
