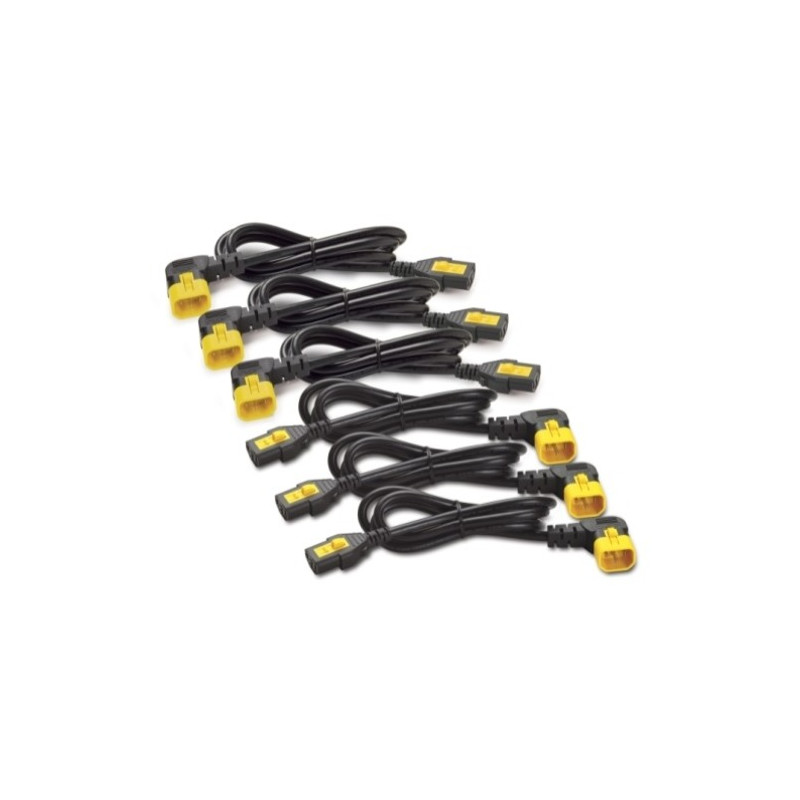

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
General Information
| Manufacturer |
Schneider Electric SA |
| Manufacturer Part Number |
AP8704R-WW |
| Manufacturer Website Address |
http://www.schneider-electric.com.au |
| Brand Name |
APC by Schneider Electric |
| Product Name |
Power Cord Kit (6 EA), Locking, C13 to C14 (90 Degree), 1.2m |
| Packaged Quantity |
6 |
| Product Type |
Jumper Cord |
Miscellaneous
| Compatibility |
APC AP8000 Series Rack PDUs |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| REACH |
Warranty
Physical Characteristics
| Product Color |
Black |
| Cord Length |
1.20 m |
| Weight (Approximate) |
1.01 kg |
Power Description
| Voltage Rating |
110 V AC |
| 220 V AC |
| Frequency |
50 Hz |
| 60 Hz |
| Current Rating |
10 A |
Technical Information
| First End Connector Type |
IEC 60320 C13 |
| First End Connector Detail |
1 x IEC 60320 C13 |
| Second End Connector Type |
IEC 60320 C14 |
| Second End Connector Detail |
1 x IEC 60320 C14 |
| Device Supported |
PDU |
