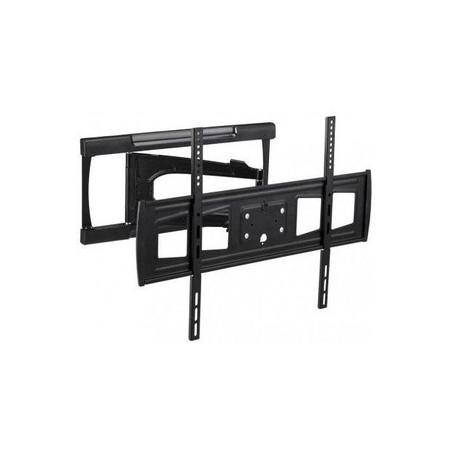

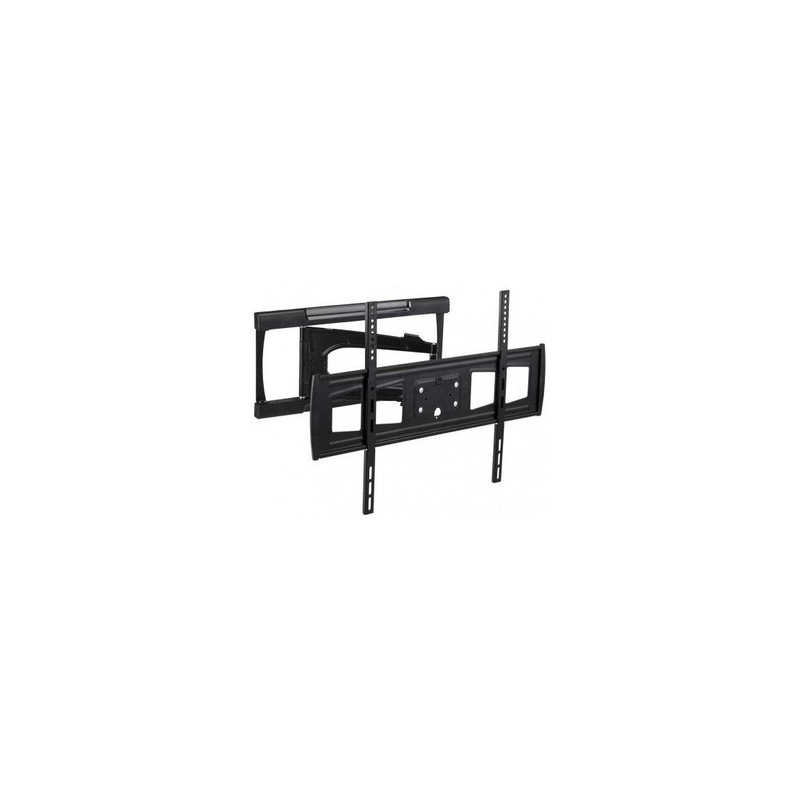

The TH-3060-UFL is an ultra slim full motion wall mount with three pivot points for tilt, pan or horizontal adjustment. The arm comes pre-assembled for quick and easy installation and once fitted, safely holds your screen less than 1.9in from the wall for a streamlined finish. The latched quick attachment system ensures safe installation with minimal time and effort. The mount supports displays up to 77lb.
General Information
| Manufacturer |
Atdec Pty Ltd |
| Manufacturer Part Number |
TH-3060-UFL |
| Manufacturer Website Address |
http://www.atdec.com.au |
| Brand Name |
Atdec |
| Product Model |
TH-3060-UFL |
| Product Name |
Ultra Slim Mount |
| Product Type |
Mounting Arm |
Physical Characteristics
| Product Color |
Black |
| VESA Mount Compatible |
Yes |
| Mounting Pattern |
200 x 200 |
| 700 x 700 |
| 100 x 100 |
| 500 x 500 |
| Product Material |
Steel |
| Aluminium |
Miscellaneous
| Additional Information |
- Maximum arm reach: 625mm (24.5")
- Minimum distance from wall: 49mm (1.9")
- Can be attached to masonry or timber stud wall
- Display horizontal adjustment range: 5° left and 5°right
- Adjustable tilt: 5° of upward and 15° of downward tilt
- Minimum number of studs required when attached to timber stud wall: 1
- Adjustable pan (at the mounting head): 90° left and 90° right from the vertical plane
- Supports universal mounting hole pattern: from 200mm to 700mm wide, from 100mm to 500mm high
|
| Compatibility |
LED TV |
| LCD TV |
| Plasma TV |
| Assembly Required |
No |
Product Information
| Device Supported |
Flat Panel Display |
| Number of Displays Supported |
1 |
| Maximum Load Capacity |
34.93 kg |
| Features |
Tilt |
| Pan |
| Pivot |
| Articulating |
| Cable Management |
| Quick Release Mechanism |
| Height Adjustable |
Yes |
