The 5200 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Drive Performance
| Maximum Read Transfer Rate |
540 MB/s |
| Maximum Write Transfer Rate |
520 MB/s |
| Endurance (DWPD) |
1 |
| Endurance (TBW) |
1750 TB |
| Endurance Type |
Read Intensive |
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
4XB7A14051 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
5200 |
| Product Name |

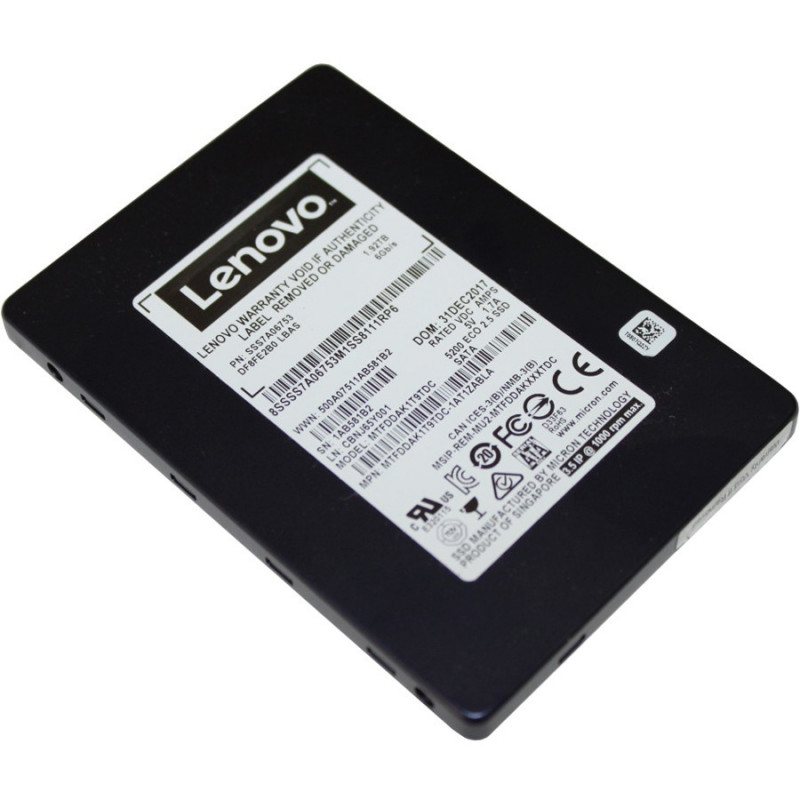

ThinkSystem ST50 3.5" 5200 960GB Entry SATA 6Gb Non Hot Swap SSD |
| Product Type |
Solid State Drive |
Interfaces/Ports
| Drive Interface |
SATA |
| Drive Interface Standard |
SATA/600 |
Power Description
| Operating Power Consumption |
6 W |
Miscellaneous
| Compatibility |
ThinkSystem: |
| Environmentally Friendly |
Yes |
| Device Supported |
Server |
Network & Communication
Physical Characteristics
| Drive Type |
Internal |
| Form Factor |
3.5" |
| Hot Swappable |
No |
| Height |
7 mm |
| Width |
70 mm |
| Depth |
100 mm |
| Weight (Approximate) |
70 g |
Technical Information
| Storage Capacity |
960 GB |
| Encryption Standard |
256-bit |
