Introduction
The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. Compared with the Intel S3520 series, these new drives offer improved performance and lower latency. The S4500 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
General Information
| Manufacturer |
Lenovo Group Limited |
| Manufacturer Part Number |
7SD7A05732 |
| Manufacturer Website Address |
http://www3.lenovo.com/au/en |
| Brand Name |
Lenovo |
| Product Series |
DC S4500 |
| Product Name |

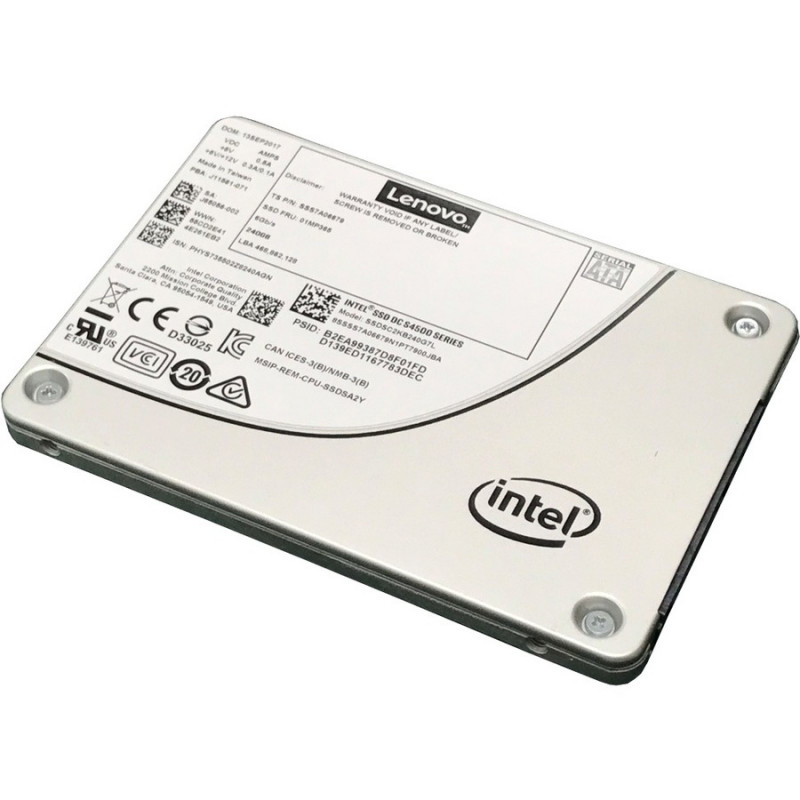

Intel S4500 240GB Enterprise Entry SATA G3HS 2.5" SSD |
| Product Type |
Solid State Drive |
Interfaces/Ports
| Drive Interface |
SATA |
| Drive Interface Standard |
SATA/600 |
Network & Communication
Technical Information
| Storage Capacity |
240 GB |
| Encryption Standard |
256-bit |
Drive Performance
| Maximum Read Transfer Rate |
500 MB/s |
| Maximum Write Transfer Rate |
190 MB/s |
Miscellaneous
| Compatibility |
Lenovo System x Servers: - x3250 M6 (3943)
- x3550 M5 (8869)
- x3650 M5 (8871)
- x3850 X6/x3950 X6 (6241, E7 v4)
- nx360 M5 (5465, E5-2600 v4)
- sd350 (5493)
- x3850 X6/x3950 X6 (6241, E7 v3)
- nx360 M5 (5465)
Lenovo Flex System servers: - x240 M5 (9532, E5 v3)
- x240 M5 (9532, E5 v4)
|
| Device Supported |
Server |
Physical Characteristics
| Product Color |
Silver |
| Drive Type |
Internal |
| Form Factor |
2.5" |
| Hot Swappable |
Yes |
| Height |
7.6 mm |
| Width |
71.1 mm |
| Depth |
101.6 mm |
| Weight (Approximate) |
63 g |
Power Description
| Operating Power Consumption |
2.60 W |
