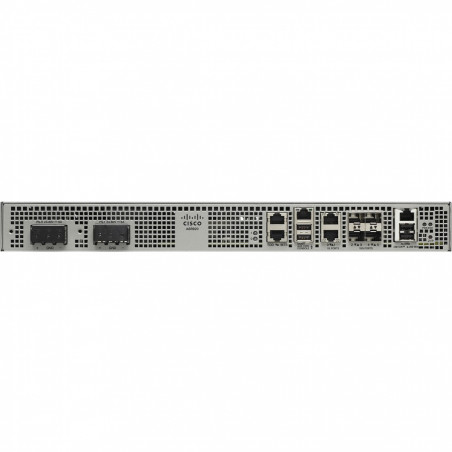

Cisco® ASR 920 Series Aggregation Services Routers are full-featured converged access platforms designed for the cost-effective delivery of wireline and wireless services. They are temperature hardened, high-throughput, small form factor, low-power-consumption routers optimized for mobile backhaul, residential, and business service applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer. Designed around key Carrier Ethernet features that simplify network operation, the Cisco ASR 920 Series enables premium services with enhanced service-level agreement (SLA) capabilities. An optional "pay-as-you-grow" feature and service activation model gives service providers a flexible, cost-effective solution.
General Information
| Manufacturer |
Cisco Systems, Inc |
| Manufacturer Part Number |
ASR-920-4SZ-D |
| Manufacturer Website Address |
http://www.cisco.com/c/en_au |
| Brand Name |
Cisco |
| Product Series |
ASR 920 |
| Product Model |
ASR-920-4SZ-D |
| Product Name |
ASR-920-4SZ-D Router |
| Product Type |
Router |
I/O Expansions
| Number of Total Expansion Slots |
8 |
Interfaces/Ports
| Total Number of Ports |
2 |
| Powerline |
No |
| Management Port |
Yes |
Network & Communication
| Ethernet Technology |
10 Gigabit Ethernet |
| Network Technology |
10/100/1000Base-T |
| 1000Base-X |
| 10GBase-X |
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Height |
43.2 mm |
| Width |
393.7 mm |
| Depth |
243.8 mm |
| Weight (Approximate) |
3.18 kg |
Power Description
| PoE (RJ-45) Port |
No |
| Redundant Power Supply Supported |
Yes |
