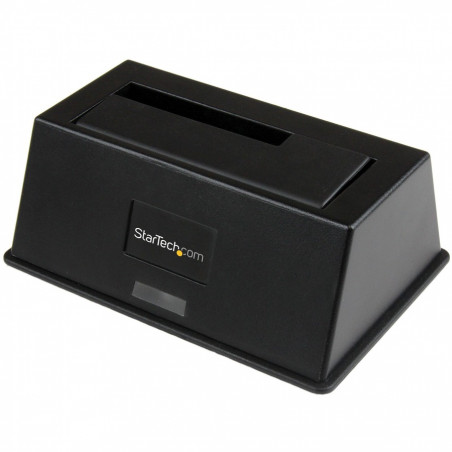

StarTech.com USB 3.0 SATA III SSD/HDD Dock with UASP
The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.
With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.
Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
General Information
Manufacturer | StarTech.com |
Manufacturer Part Number | SDOCKU33BV |
Manufacturer Website Address | http://www.startech.com/au |
Brand Name | StarTech.com |
Product Name | USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with UASP |
Packaged Quantity | 1 |
Product Type | Drive Dock |
I/O Expansions
Number of Total Expansion Bays | 1 |
Number of 2.5"/3.5" Bays | 1 |
Miscellaneous
Platform Supported | PC |
Mac | |
Certifications & Standards | FCC |
CE | |
Environmentally Friendly | Yes |
Network & Communication
Wireless LAN | No |
UASP Support | Yes |
Interfaces/Ports
Drive Interface | SATA/600 |
Host Interface | USB 3.0 Type B |
Physical Characteristics
Product Color | Black |
Cooling Fan | No |
Form Factor | External |
Height | 50.8 mm |
Width | 91.4 mm |
Depth | 139.7 mm |
Weight (Approximate) | 317.5 g |
Power Description
Input Voltage | 110 V AC |
220 V AC | |
Power Source | AC Adapter |
Technical Information
Number of Hard Drives Supported | 1 |
Number of Hard Drives Installed | No |
Number of Solid State Drive Supported | 1 |
Number of Solid State Drive Installed | No |
